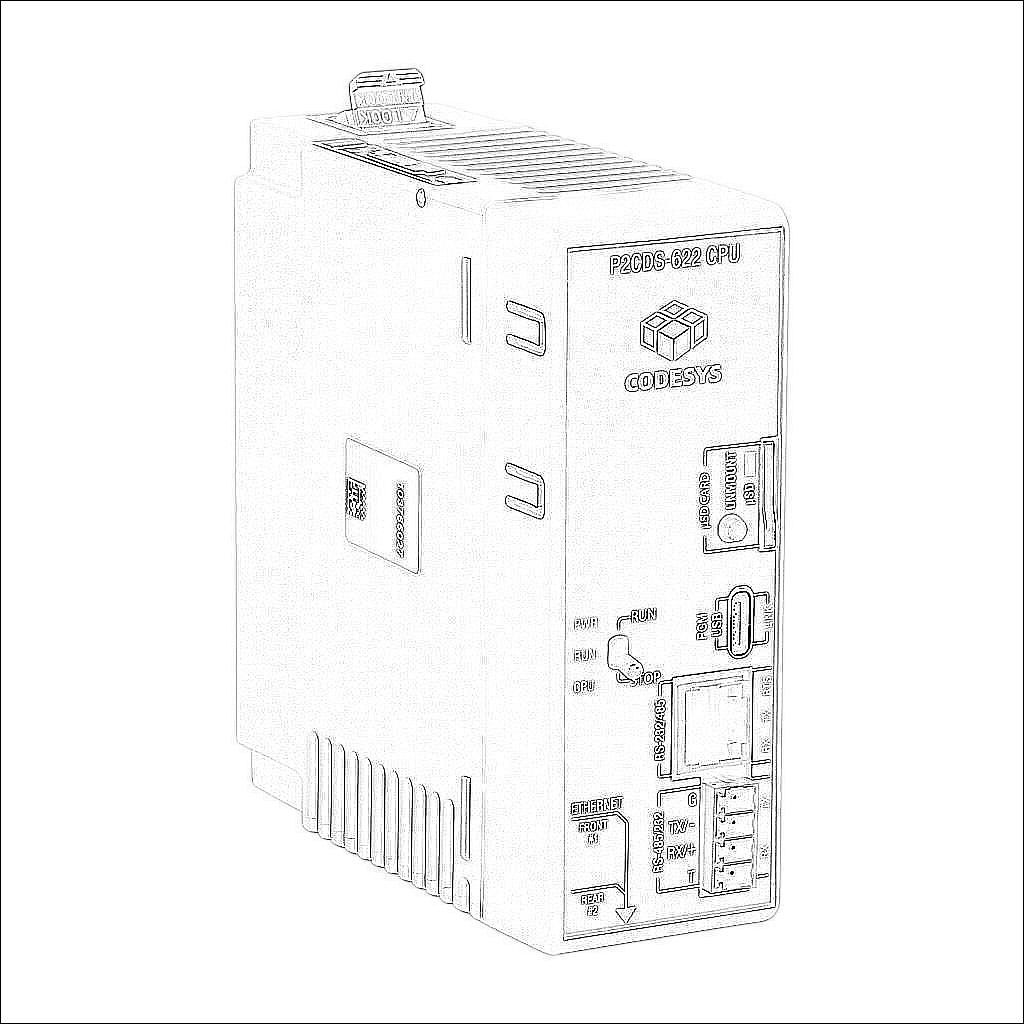

P2CDS-622

P2CDS-622

ProductivityCODESYS CPU, up to 50 MB ladder memory, microSD card slot, (2) Ethernet 10/100Base-T (RJ45), (1) RS-232/RS-485 (RJ12), (1) RS-232/RS-485 (4-pin terminal) and (1) USB C port(s), battery included. Not compatible with Productivity Suite.

$667.50
/
Technical Data
BrandProductivityCODESYS
ItemCPU
Total MemoryUp to 50 MB
Ladder MemoryUp to 50 MB
User Data MemoryUp to 50 MB
Removable Media TypeMicroSD card slot
Programming LanguageIEC 61131-3 ladder, function block diagram, structured text, sequential function chart and instruction list
Programming SoftwareCODESYS programming software v3.5 SP19 or later only (no additional fieldbuses, protocols or add-on licenses supported)
Communication Port and Connection Type(s)
  • (2) Ethernet 10/100Base-T (RJ45)
  • (1) RS-232/RS-485 (RJ12)
  • (1) RS-232/RS-485 (4-pin terminal)
  • (1) USB C
Port Protocol(s)
  • MQTT Client
  • MQTTs Client
  • Modbus RTU Master/Slave
  • Modbus TCP
  • ASCII In/out
  • TCP/IP
  • UDP/IP
  • EtherNet/IP explicit messaging scanner/adapter
  • EtherNet/IP implicit messaging scanner/adapter
  • webserver (non-secure HTTP)
  • programming and monitoring
Port Speed(s)
  • 10/100 Mbps
  • up to 115.2k baud
Real Time Clock/CalendarYes
Retentive MemoryYes
Battery BackupYes
IncludesD2-BAT-1 battery
Additional InformationNot compatible with Productivity Suite.
Dangerous Goods
  • Battery Installed: No
  • Packaging Instructions: 969
  • UN Number: UN3091
  • Hazard Type: Lithium Batteries
  • Battery Type: Button
  • Lithium Content: 0.17
  • Replacement Battery: D2-BAT-1
  • Generic Battery: CR2354
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
