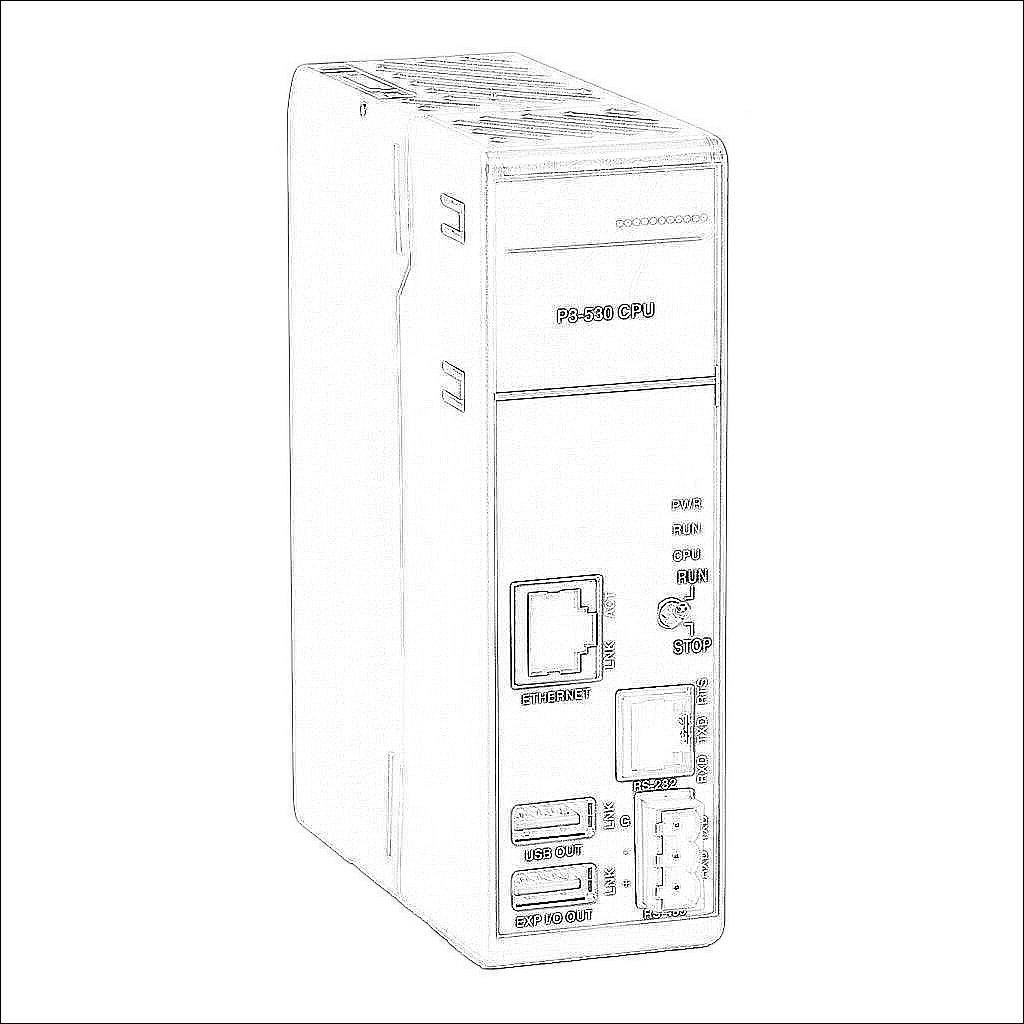

P3-530

P3-530

Productivity3000 CPU, up to 25 MB ladder memory, USB A storage, (1) Ethernet 10/100Base-T (RJ45), (1) RS-232 (RJ12), (1) RS-485 (3-pin terminal) and (1) USB A expansion port(s), battery included.

$572.50
/
Technical Data
BrandProductivity3000
ItemCPU
Total MemoryUp to 25 MB
Ladder MemoryUp to 25 MB
User Data MemoryUp to 25 MB
Removable Media TypeUSB A storage
Programming LanguageLadder
Programming SoftwareProductivity Suite programming software v1.7 or later
Communication Port and Connection Type(s)
  • (1) Ethernet 10/100Base-T (RJ45)
  • (1) RS-232 (RJ12)
  • (1) RS-485 (3-pin terminal)
  • (1) USB A expansion
Port Protocol(s)
  • MQTT Client
  • Modbus RTU Master/Slave
  • Modbus TCP
  • ASCII In/out
  • TCP/IP
  • UDP/IP
  • local expansion I/O
  • webserver (non-secure HTTP)
  • programming and monitoring
Port Speed(s)
  • 10/100 Mbps
  • up to 115.2k baud
Real Time Clock/CalendarYes
Retentive MemoryYes
Battery BackupYes
IncludesD2-BAT-1 battery
Dangerous Goods
  • Battery Installed: No
  • Packaging Instructions: 969
  • UN Number: UN3091
  • Hazard Type: Lithium Batteries
  • Battery Type: Button
  • Lithium Content: 0.17
  • Replacement Battery: D2-BAT-1
  • Generic Battery: CR2354
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
