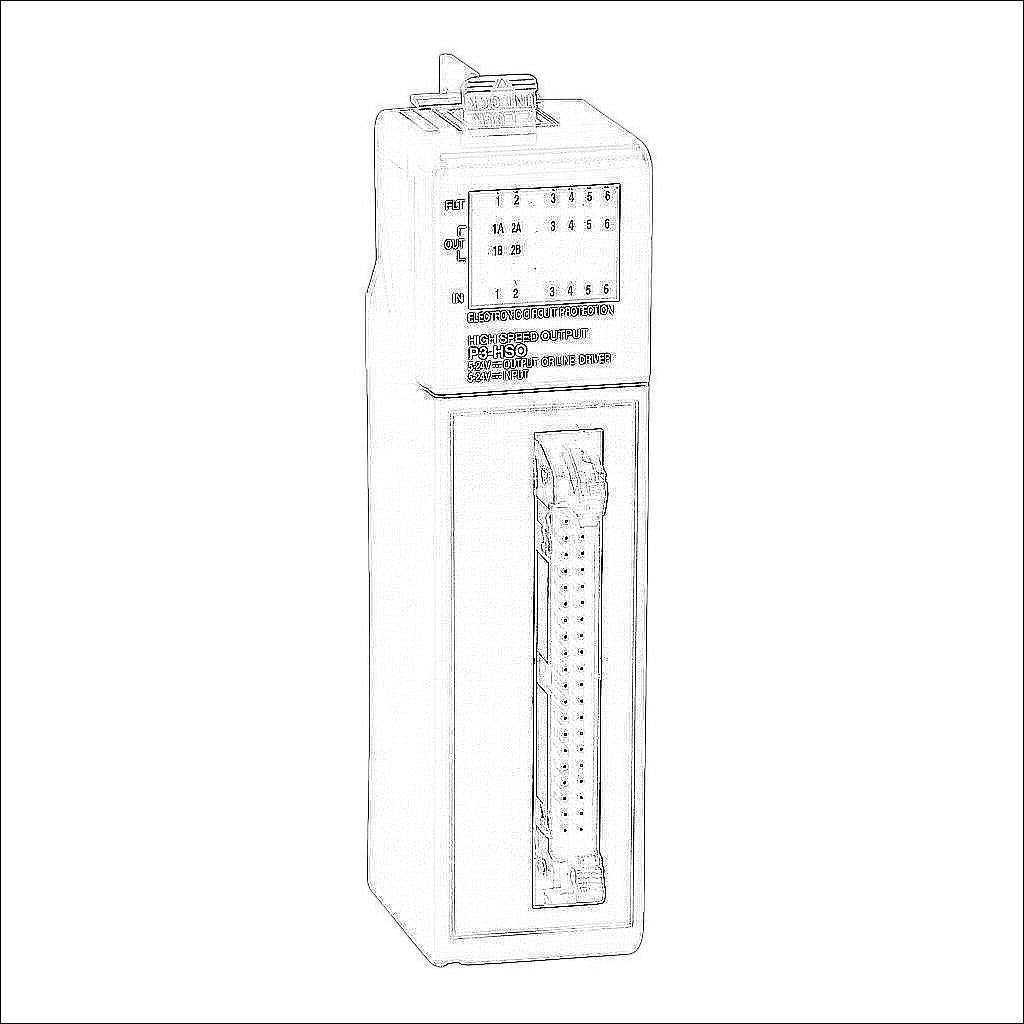

Productivity3000 pulse output module, 1 MHz maximum switching frequency, 4 high-speed output point(s), 5-24 VDC, sinking/sourcing, 2-channel, differential and single-ended output channel(s), 6 high-speed input point(s), 5-24 VDC, sinking/sourcing, external 24 VDC required.

$807.50
/
Technical Data
BrandProductivity3000
ItemOutput module
I/O Module TypePulse
Maximum Switching Frequency1 MHz
Number of High-Speed Capable Output Points4
Nominal Output Voltage5-24 VDC
Discrete Output TypeSinking/sourcing
Number of Isolated Output Commons4
Load Current0.5A/point
Number of Output Channels2
Pulse Output Channel Type
  • differential
  • NPN open collector
Number of High-Speed Capable Input Points6
Nominal Input Voltage5-24 VDC
Discrete Input TypeSinking/sourcing
Number of Non-Isolated Input Commons2
Output Pulse Mode(s)
  • up to (2) PTO linear step/direction outputs
  • up to (2) PTO rotary clockwise/counter-clockwise (CW/CCW) outputs
  • up to (2) PTO quadrature (A and B) outputs
Axis Profile(s)
  • relative/absolute positioning
  • velocity mode
  • trapezoid
  • S-curve
  • registration
  • homing
  • jogging
  • linear mode
  • rotary mode
External Power Requirement24 VDC
RequiresZL-RTB40(-1) ZIPLink connector module and ZL-CBL40-xS (-S, -1S or -2S) pre-wired shielded cables
Programming SoftwareProductivity Suite programming software v1.7 or later
