| Technical Data | ||
|---|---|---|
| Brand | ProSense | |

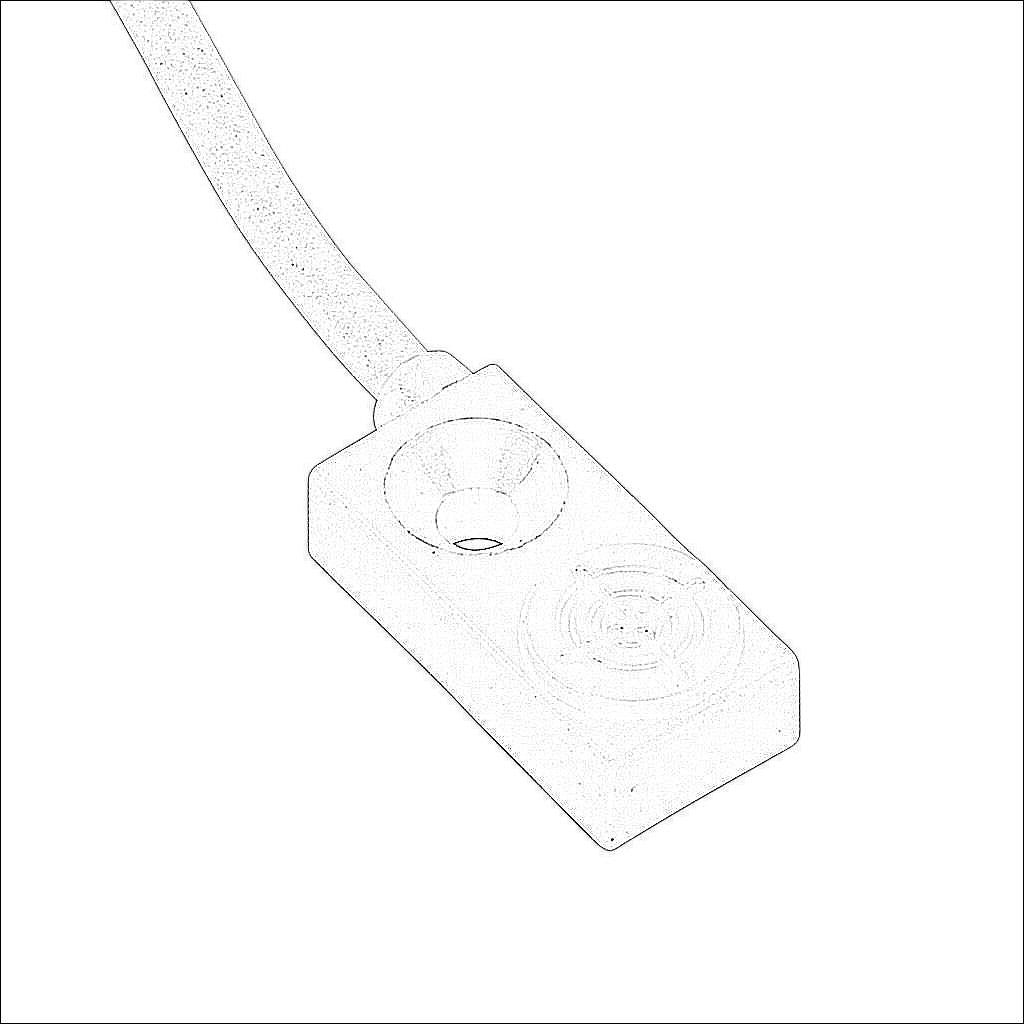

| Item | Proximity sensor | |
| Sensor Type | Inductive | |
| Application | Standard duty and small space | |
| Shape | Rectangular | |
| Housing Size | 8 x 4.7 x 16mm body | |
| Housing Material | Polyamide | |
| Sensing Face | Top sensing | |
| Sensing Method | Standard sensing | |
| Adjustable | No | |
| Number of Wires | 3 | |
| Switching Output | NPN | |
| Operation Mode | N.O. output | |
| Sensing Distance | 1.5mm | |
| Mounting Type | Flush | |
| IO-Link Compatible | No | |
| Switching Frequency | 2.5 kHz | |
| Operating Voltage | 5-30 VDC | |
| Operating Temperature | -25 to 70c | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP67 | |
| Connection | 3-pin M8 quick-disconnect | |
| Cable Length | 0.9ft/0.3m | |
| Jacket Material | PUR | |
| Additional Information | Purchase cable separately | |
