PAL-EIP

PAL-EIP

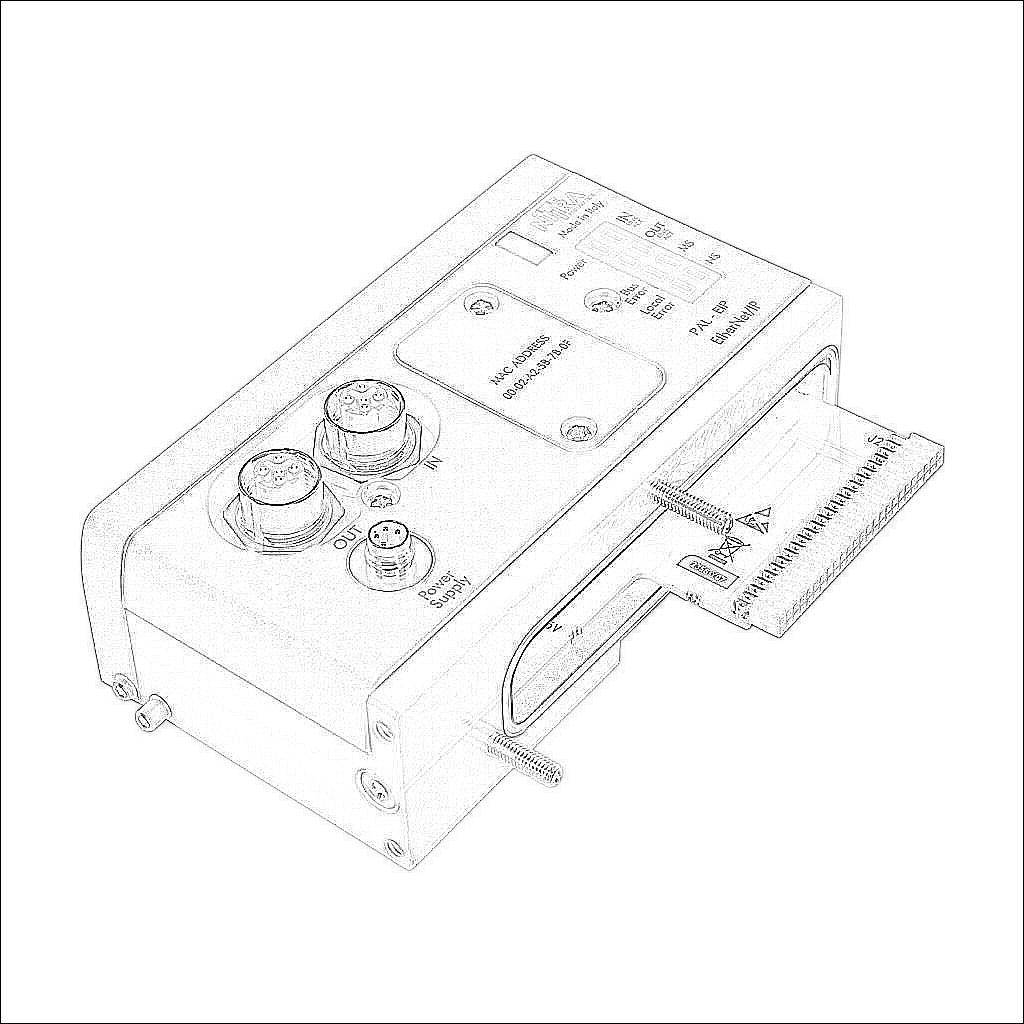

NITRA bus coupler, 12-24 VDC, (2) Ethernet 10/100Base-T (M12) port(s), EtherNet/IP, 10/100 Mbps, (128) solenoid(s) per system, IP65. For use with PAL series. Requires 4-pin M8 power cable.

$642.50
/
Technical Data
BrandNITRA
ItemBus coupler
Voltage Rating12-24 VDC
Number of Ports2
Communication Port and Connection Type(s)(2) Ethernet 10/100Base-T (M12) port(s)
Port Protocol(s)
  • EtherNet/IP implicit messaging adapter
  • EtherNet/IP explicit messaging adapter
Port Speed(s)10/100 Mbps
Number of Solenoids(128) solenoid(s) per system
Number of Discrete Inputs/Outputs128 inputs/128 outputs per system
Number of Analog Inputs/Outputs16 inputs/16 outputs per system
IP RatingIP65
External Power Requirement12-24 VDC
For Use WithPAL series
Requires4-pin M8 power cable
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
