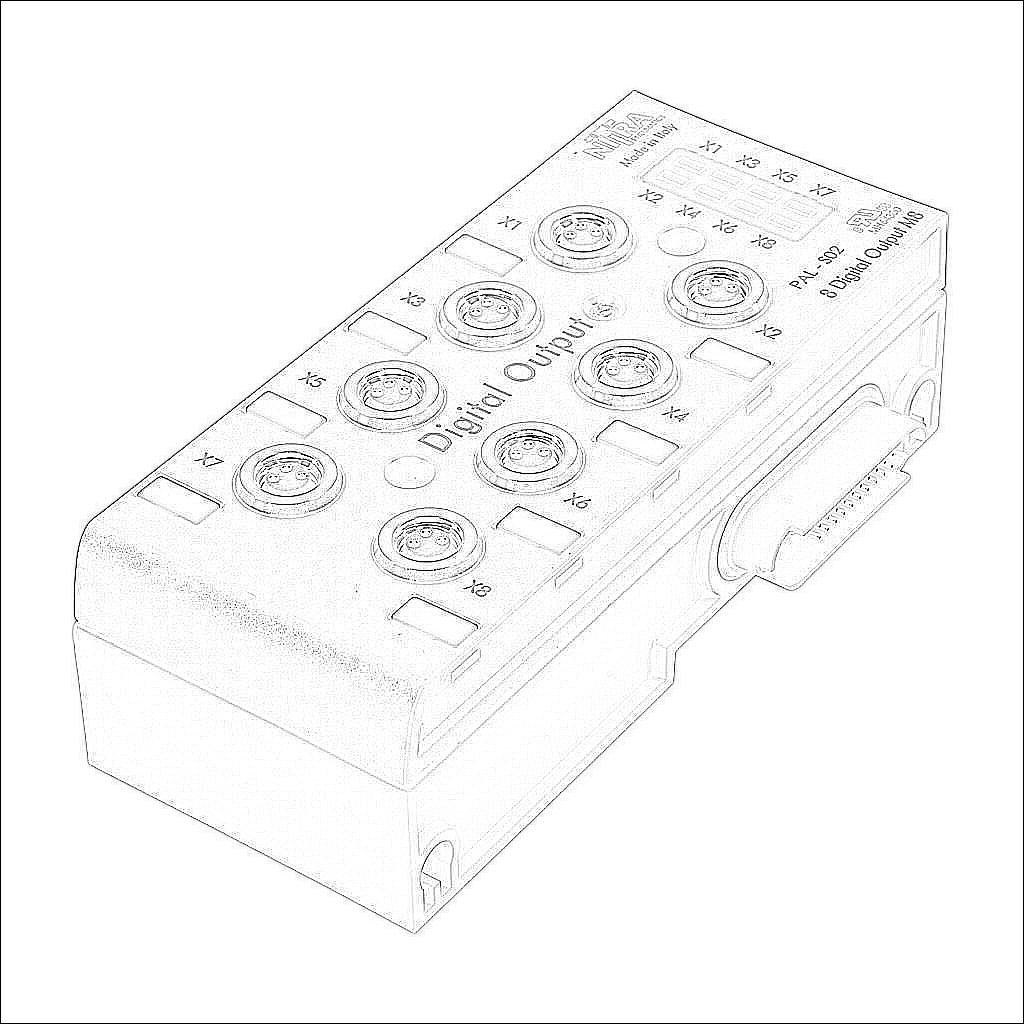

PAL-S02

PAL-S02

NITRA discrete output module, 8-point, 12-24 VDC, PNP/NPN, 1 common(s), 8 point(s) per common, 1A/point, 4A/common, short circuit and overload protection, IP65. Mounting hardware included. Requires PAL-EIP bus coupler.

$390
/
Technical Data
BrandNITRA
ItemOutput module
I/O Module TypeDiscrete
Connector Type3-pin M8
Number of Output Points8
Nominal Output Voltage12-24 VDC
Discrete Output TypePNP/NPN
Number of Non-Isolated Output Commons1
Number of Points per Common8
Load Current1A/point, 4A/common
Protection Type(s)
  • short circuit
  • overload
IP RatingIP65
IncludesMounting hardware
RequiresPAL-EIP bus coupler
Programming SoftwareNITRA PAL configuration software v1.0 or later
Additional InformationAll ports require connectors or caps to maintain IP rating
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
