| Technical Data | ||
|---|---|---|
| Brand | NITRA | |

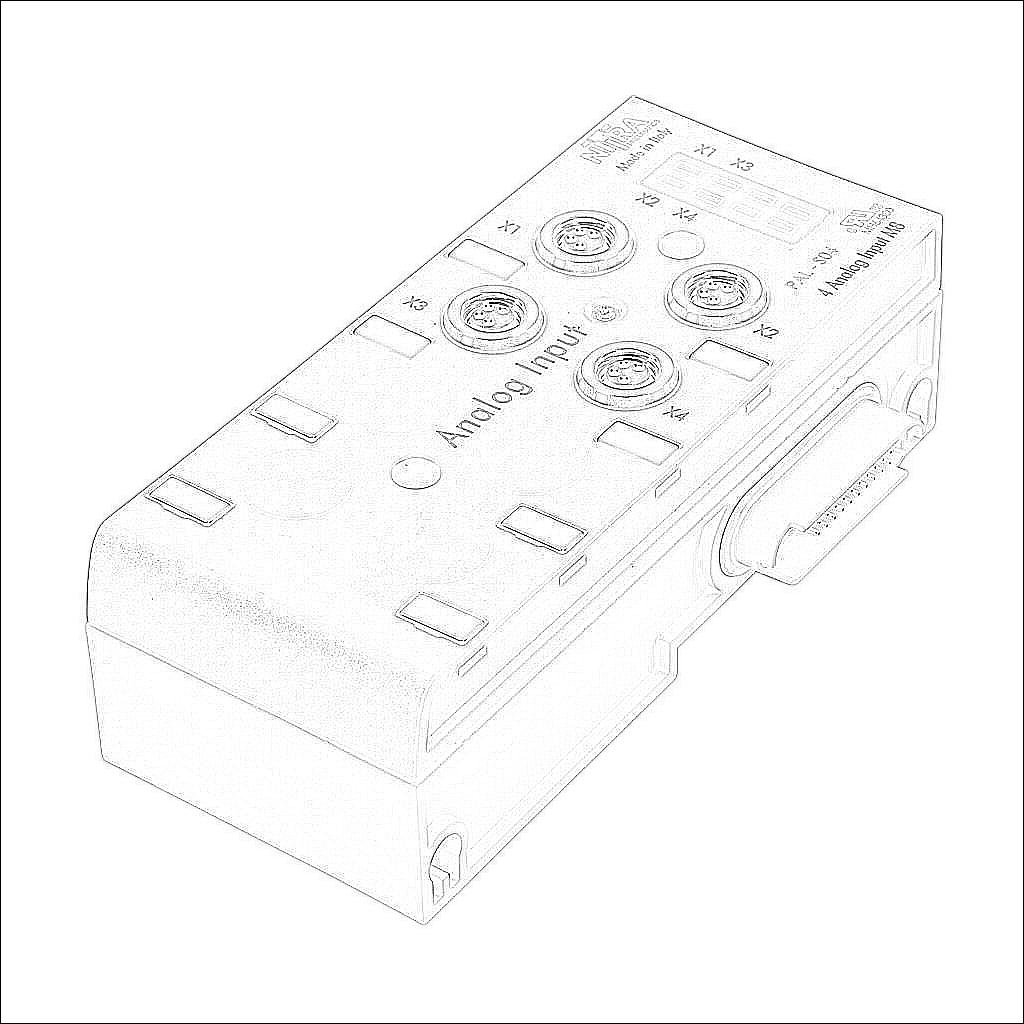

| Item | Input module | |
| I/O Module Type | Analog | |
| Number Of Input Channels | 4 | |
| Input Signal Type(s) | Current/voltage | |
| Isolated Channels | No | |
| Number of Non-Isolated Input Commons | 1 | |
| Input Resolution | 15-bit | |
| Input Current Signal Range | 0-20 mA and 4-20 mA | |
| Input Voltage Signal Range | 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC | |
| IP Rating | IP65 | |
| For Use With | PAL series | |
| Includes | Mounting hardware | |
| Requires | PAL-EIP bus coupler | |
| Programming Software | NITRA PAL configuration software v1.0 or later | |
| Additional Information | All ports require connectors or caps to maintain IP rating | |
