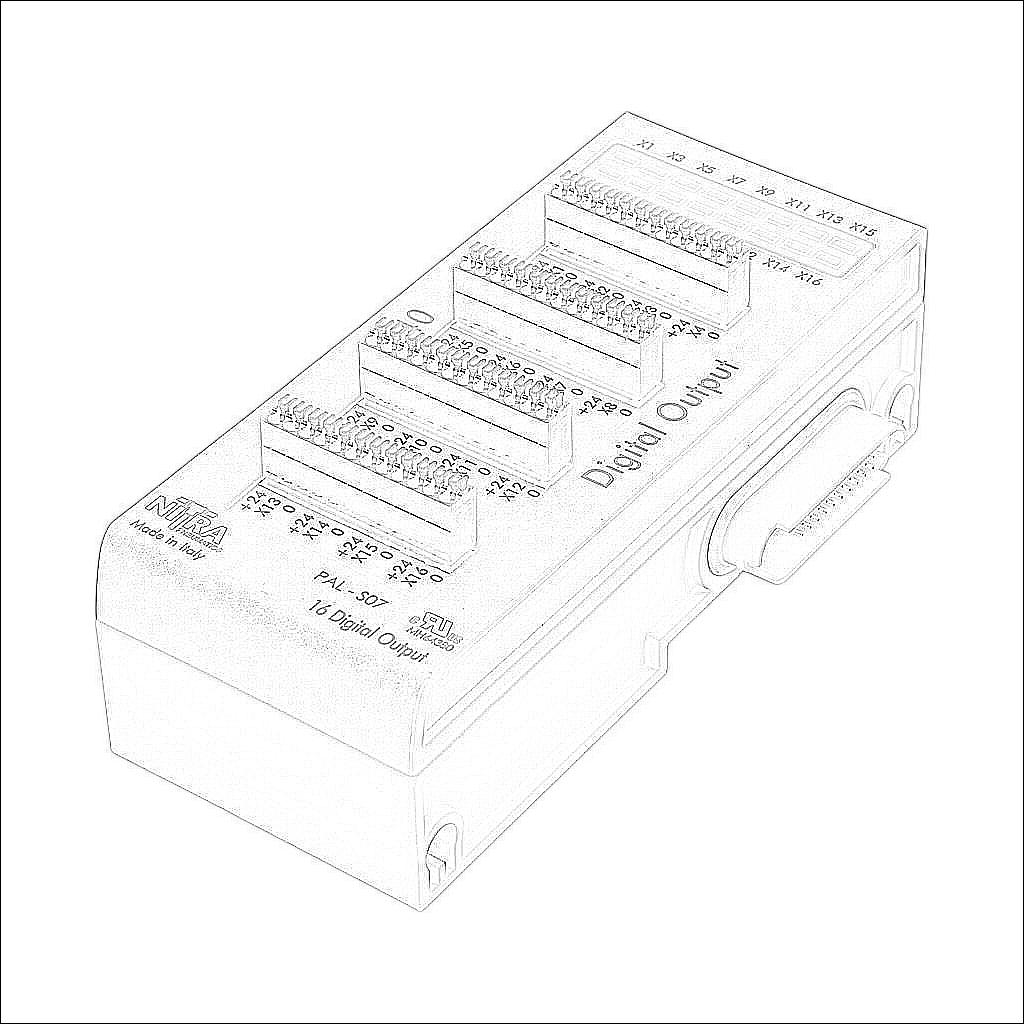

PAL-S07

PAL-S07

NITRA discrete output module, 16-point, 12-24 VDC, PNP/NPN, 1 common(s), 16 point(s) per common, 0.5A/point, 3A/common, short circuit and overload protection, IP40. Mounting hardware included. Requires PAL-EIP bus coupler.

$593.75
/
Technical Data
BrandNITRA
ItemOutput module
I/O Module TypeDiscrete
Connector TypeSpring clamp terminal
Number of Output Points16
Nominal Output Voltage12-24 VDC
Discrete Output TypePNP/NPN
Number of Non-Isolated Output Commons1
Number of Points per Common16
Load Current0.5A/point, 3A/common
Protection Type(s)
  • short circuit
  • overload
IP RatingIP40
IncludesMounting hardware
RequiresPAL-EIP bus coupler
Programming SoftwareNITRA PAL configuration software v1.0 or later
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
