| Technical Data | ||
|---|---|---|
| Brand | SureGear | |

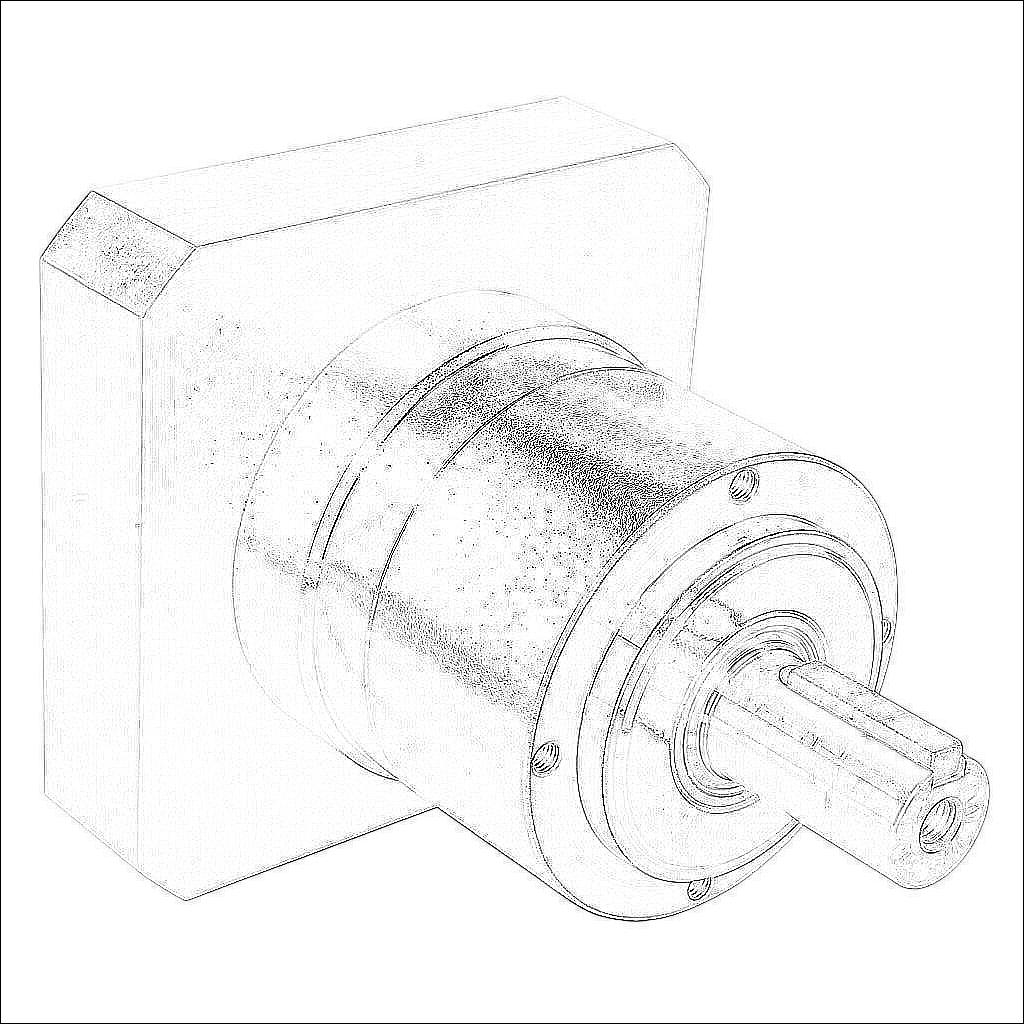

| Item | Gearbox | |
| Application | High-precision | |
| Gearbox Type | Planetary | |
| Gear Ratio | 5:1 | |
| Output Configuration | Inline | |
| Gearbox Output Shaft Diameter | 32mm | |
| Nominal Output Torque | Nominal output torque 180 N-m (1593 lb-in) | |
| Number of Stages | 1 | |
| Frame | 120mm | |
| For Use With | SureServo and SureServo2 SV(2)M-220(B) and SV(2)M-230(B) motors | |
| Includes | Input adapter bushing, motor mounting hardware and output shaft key | |
