| Technical Data | ||
|---|---|---|
| Brand | Sifam Tinsley | |

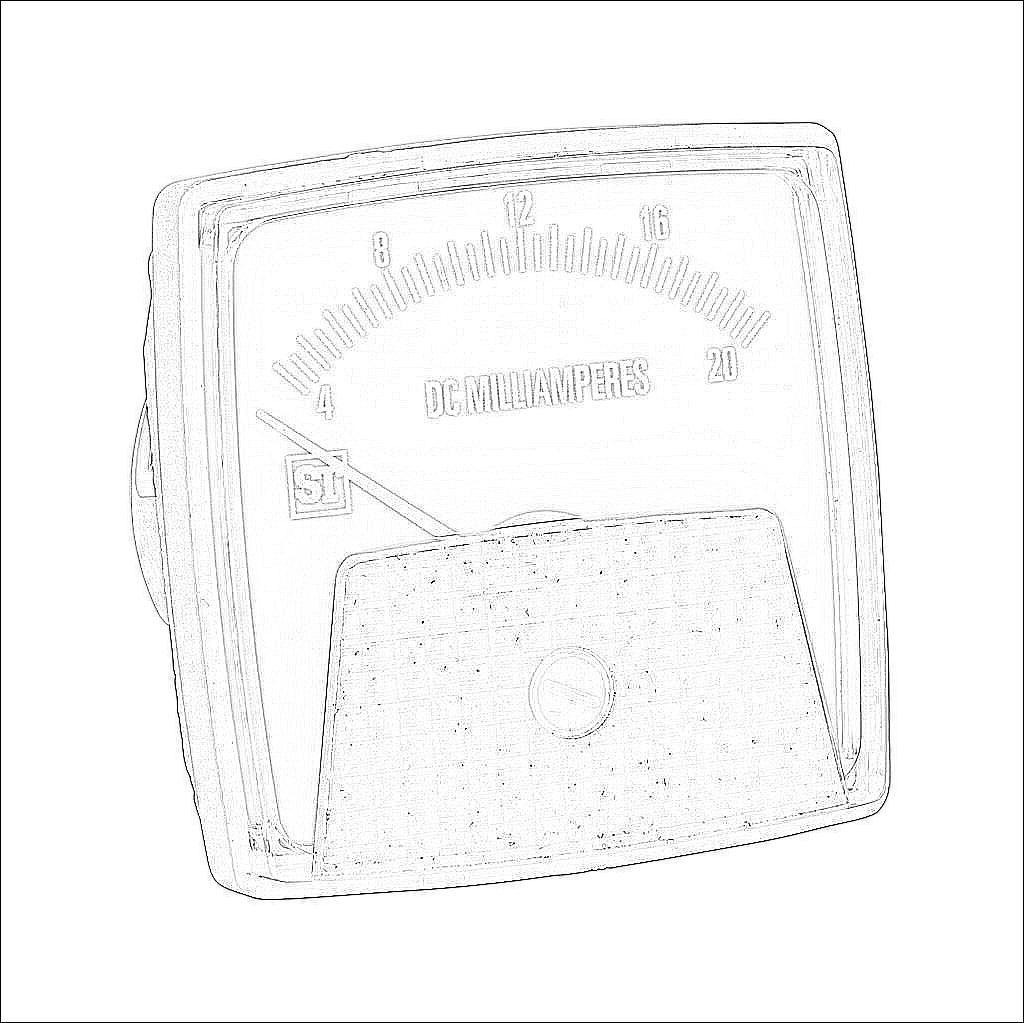

| Item | Panel meter | |
| Series | Smartlook | |
| Display Type | 2.5in analog dial | |
| Scale | 4-20mA | |
| Case Type | Polycarbonate | |
| Input Current Signal Range | 4-20mA DC | |
| Input Type | Self contained | |
| Movement Type | Moving coil | |
| Accuracy | +/- 1.5% of full scale | |
| Mounting | Round 3-hole | |
| Mounting Hole Size | 2.16in | |
| IP Rating | IP55 | |
| NEMA Rating | 4 | |
| Connection | #10-32 UNF terminal stud with nut | |
| Applicable Standards | ANSI C39.1 and EN/IEC 60051-1 | |
