| Technical Data | ||
|---|---|---|
| Brand | Sifam Tinsley | |

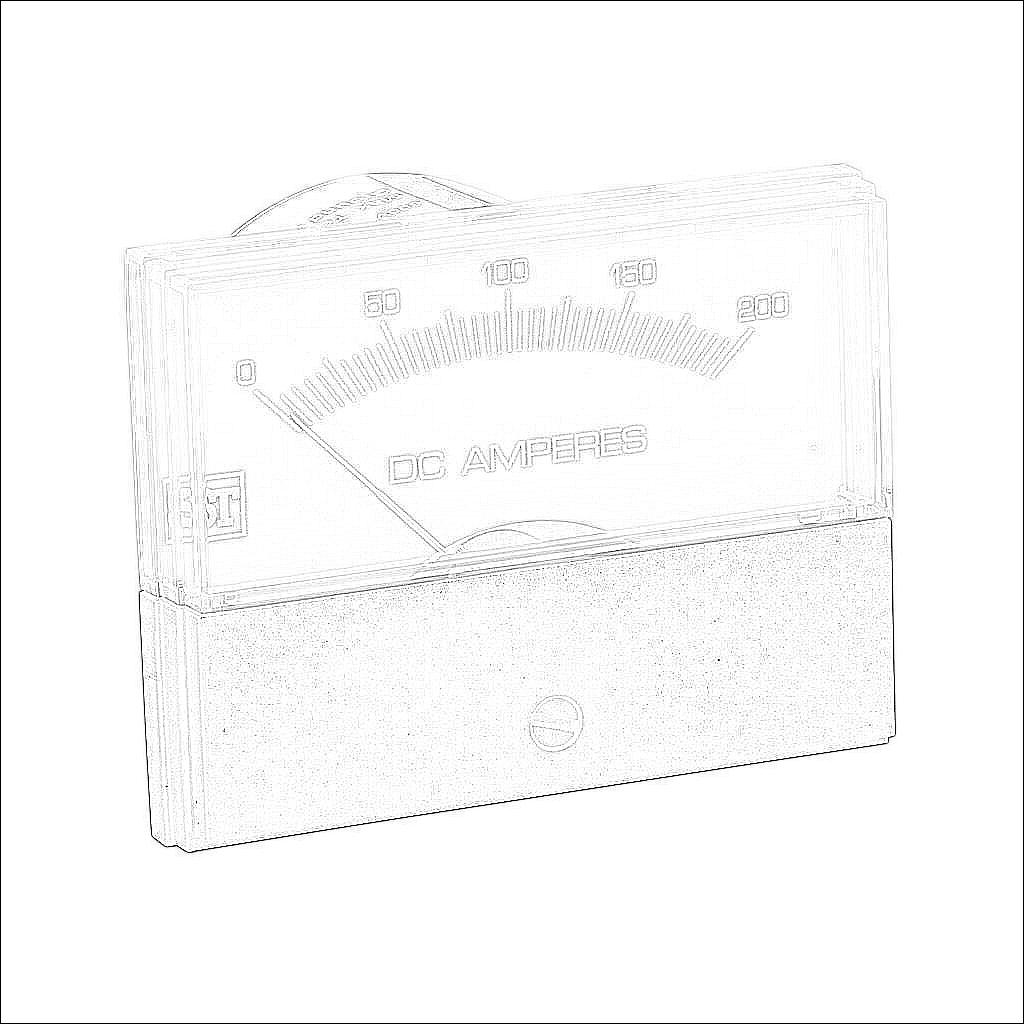

| Item | Panel meter | |
| Series | Contender | |
| Display Type | 2.5in analog dial | |
| Scale | 0-200A DC | |
| Case Type | Polycarbonate | |
| Input Voltage Signal Range | 0-50 mVDC (shunt) | |
| Input Type | Shunt rated | |
| Movement Type | Moving coil | |
| Accuracy | +/- 1.5% of full scale | |
| Mounting | Round 4-hole | |
| Mounting Hole Size | 2.16in | |
| IP Rating | IP54 | |
| NEMA Rating | 3 | |
| Connection | #10-32 UNF terminal stud with nut | |
| Applicable Standards | ANSI C39.1 and EN/IEC 60051-1 | |
