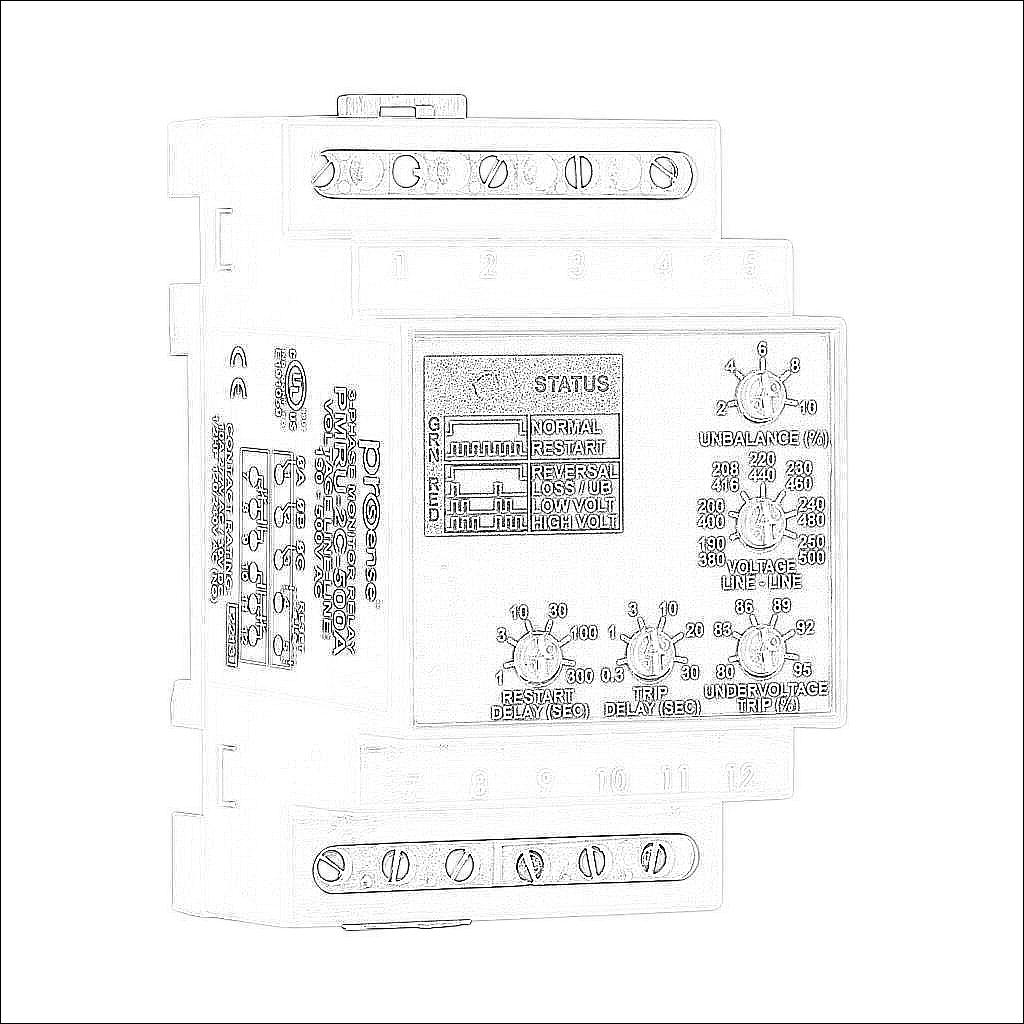

PMRU-2C-500A

PMRU-2C-500A

ProSense phase monitor relay, 3-phase, 35mm DIN rail mount, 190-500 VAC input voltage, DPDT, 10A contact rating, screw terminal(s), LED indicator(s), phase reversal, phase loss, phase unbalance, overvoltage and undervoltage protection.

$113.75
/
Technical Data
BrandProSense
ItemRelay
Relay TypePhase monitor
Number of Phases3
Mounting35mm DIN rail
Relay Housing TypeFinger-safe
Input Voltage190-500 VAC
Relay ConfigurationDPDT
Connector TypeScrew terminal(s)
Contact Rating10A
IndicatorLED
Protection Type(s)
  • phase reversal
  • phase loss
  • phase unbalance
  • overvoltage
  • undervoltage
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
