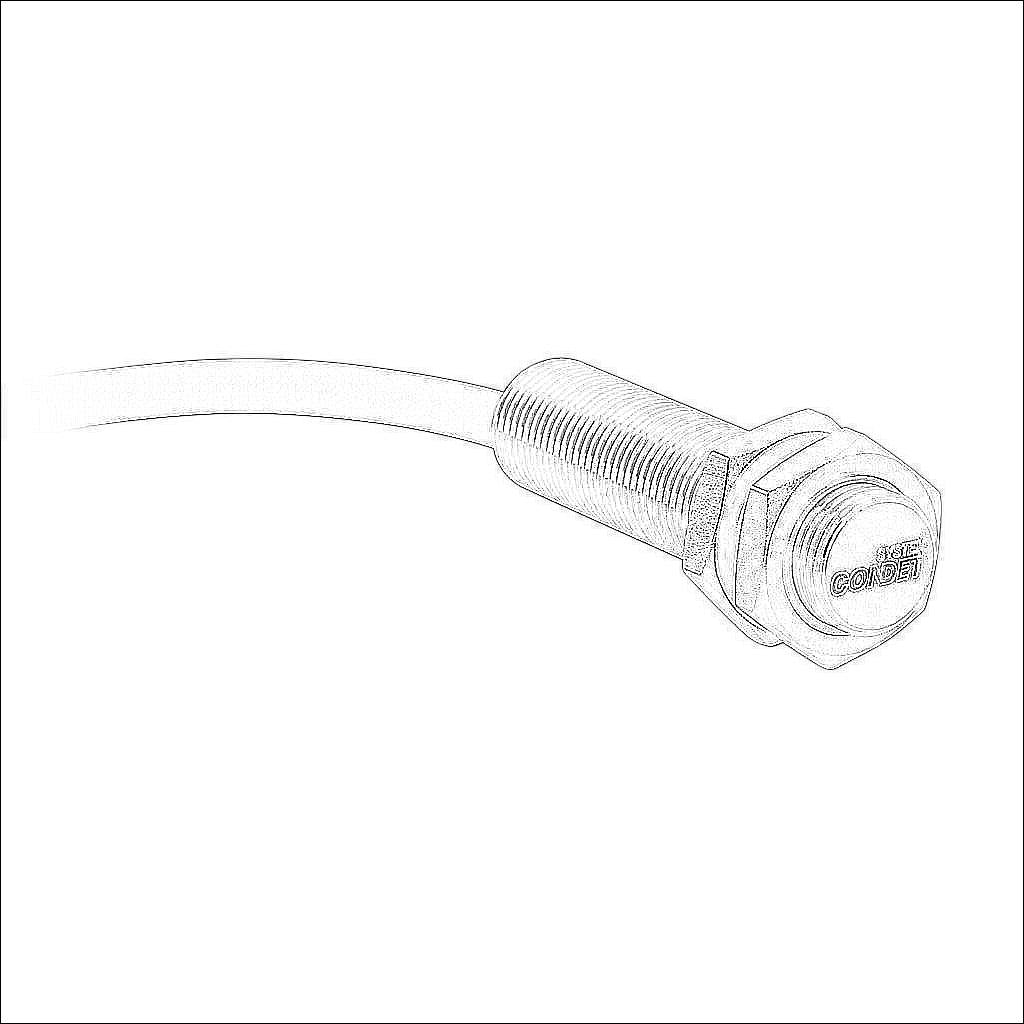

| Technical Data | ||
|---|---|---|
| Brand | AutomationDirect | |
| Item | Proximity sensor | |
| Sensor Type | Inductive | |
| Application | Harsh duty and full metal | |
| Shape | Tubular | |
| Housing Size | 12mm diameter x 50mm body | |
| Housing Material | Stainless steel | |
| Barrel Type | Threaded | |
| Sensing Method | Triple sensing | |
| Adjustable | No | |
| Number of Wires | 3 | |
| Switching Output | PNP | |
| Operation Mode | N.O. output | |
| Sensing Distance | 6mm | |
| Mounting Type | Flush | |
| IO-Link Compatible | No | |
| Switching Frequency | 400 Hz | |
| Operating Voltage | 10-30 VDC | |
| Operating Temperature | -25 to 70c | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP68 | |
| Connection | Pigtail | |
| Conductor Size | 22 AWG | |
| Cable Length | 6.5ft/2m | |
| Includes | Mounting hardware | |
