| Technical Data | ||
|---|---|---|
| Brand | ProSense | |

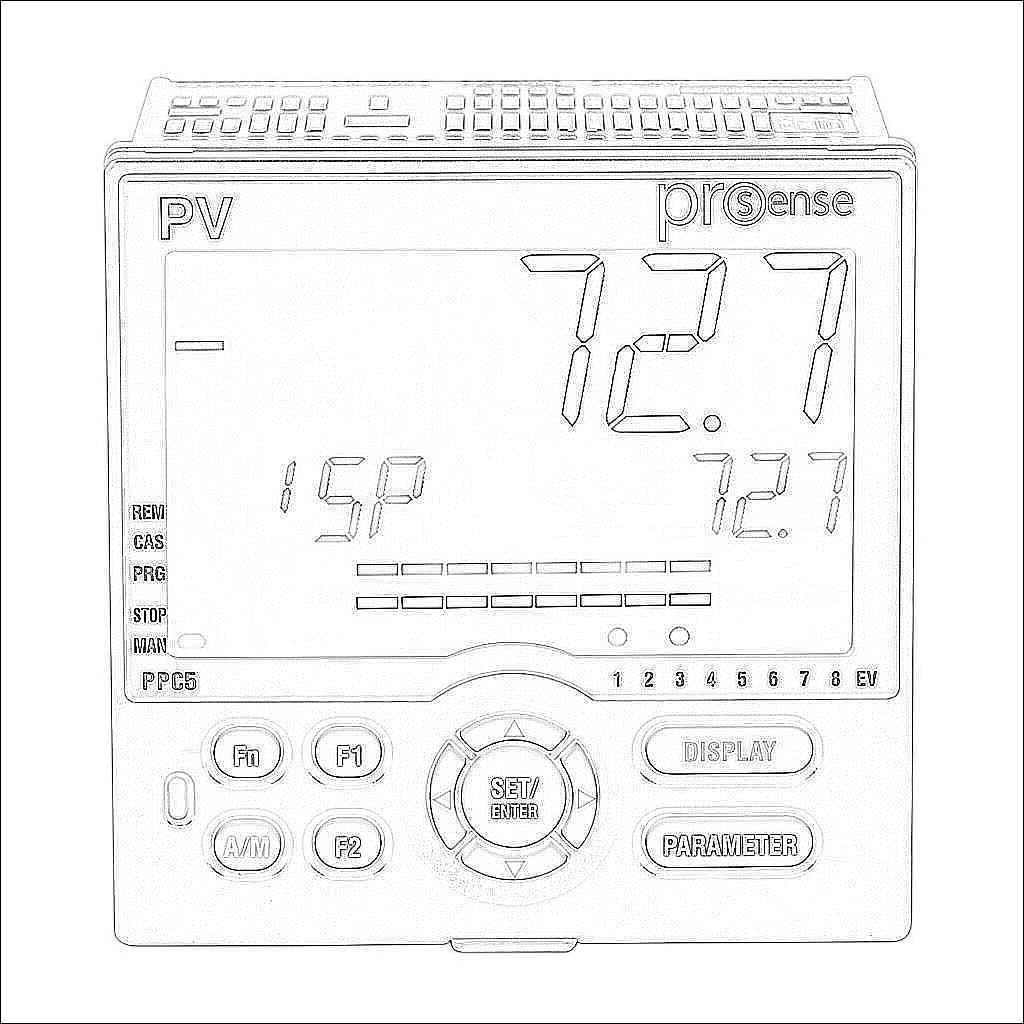

| Item | Advanced process controller | |
| Mounting | Panel | |
| Mounting Hole Size | 1/4 DIN | |
| Display | 2-line alpha-numeric LCD, bar graph LCD | |
| Input Current Signal Range | 0-20 mA and 4-20 mA | |
| Input Voltage Signal Range | 0.4-2 VDC, 1-5 VDC, 0-2 VDC, 0-10 VDC, -10-20 mVDC and 0-100 mVDC | |
| Discrete Input Type | (3) dry contact or NPN | |
| Input Thermocouple Signal Type | J, K, T, N, E, R, S, B, L, U, W, WRe, PL2, PR2040 | |
| Input RTD Signal Types | Pt100 and JPt100 | |
| Output | 0-20 mA or 4-20 mA, 12 VDC pulse, (1) 3A SPDT relay, (3) 1A SPST relays | |
| Retransmission Output | 0-20 mA and 4-20 mA | |
| Operating Voltage | 100-240 VAC | |
| Control Mode | PID, ON/OFF, manual, sample PI or batch PID | |
| Control Function | Single loop, PV hold | |
| Communication | Ethernet | |
