| Technical Data | ||
|---|---|---|
| Brand | Leuze | |

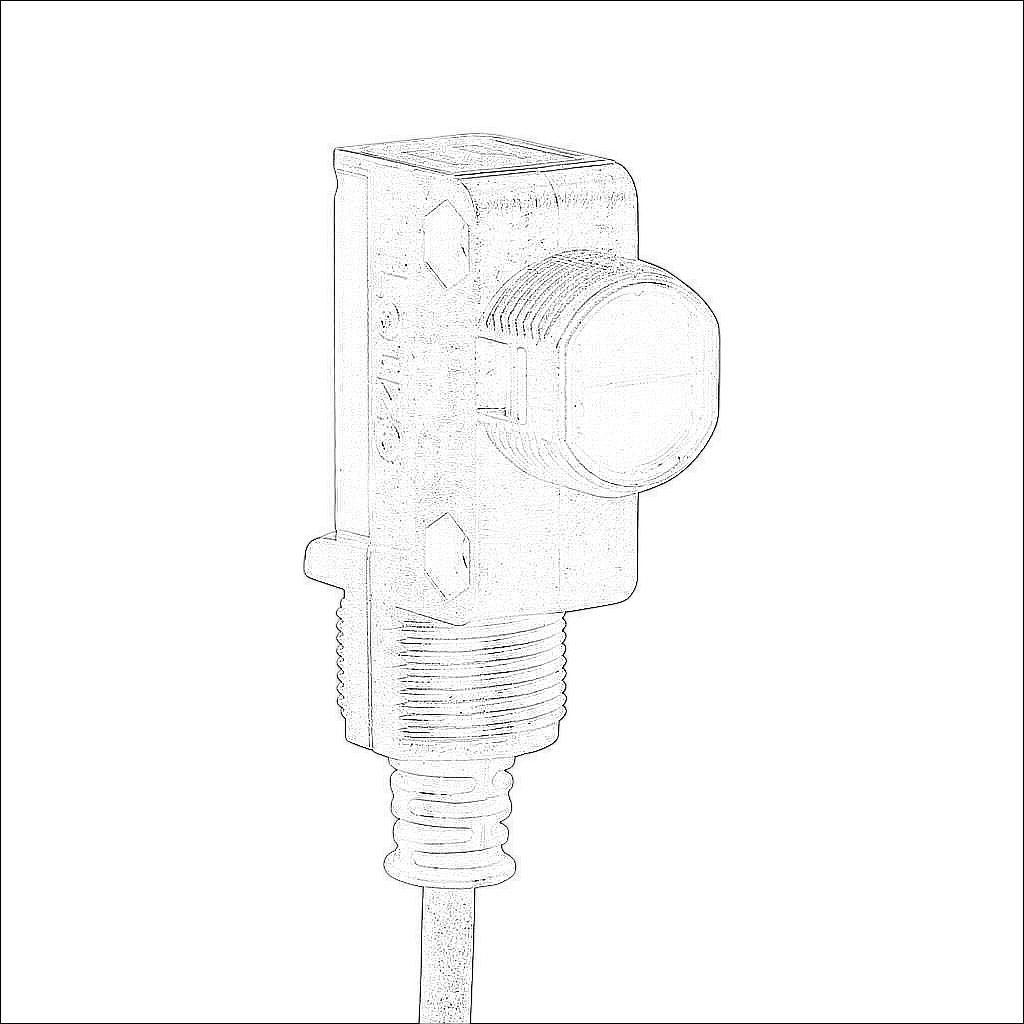

| Item | Photoelectric sensor | |
| Shape | Rectangular | |
| Housing Size | 57.7 x 15 x 37.3mm | |
| Thread lens size | 18mm | |
| IP Rating | IP67 | |
| Application | Standard duty | |
| Housing Material | ABS plastic | |
| Sensing Method | Polarized retroreflective | |
| Operating Voltage | 10-30 VDC | |
| Number of Wires | 4 | |
| Switching Output | NPN | |
| Sensing Distance | 0.02-4.5m | |
| Operation Mode | Complementary light-on/dark-on | |
| Switching Frequency | 500 Hz | |
| Light Emission | Visible red | |
| IO-Link Compatible | No | |
| Cable Length | 0.6ft/0.2m | |
| Jacket Material | PUR | |
| Connection | 4-pin M12 quick-disconnect | |
| Includes | Mounting hardware | |
| Additional Information | Purchase cable separately | |
