| Technical Data | ||
|---|---|---|
| Brand | Schmersal | |

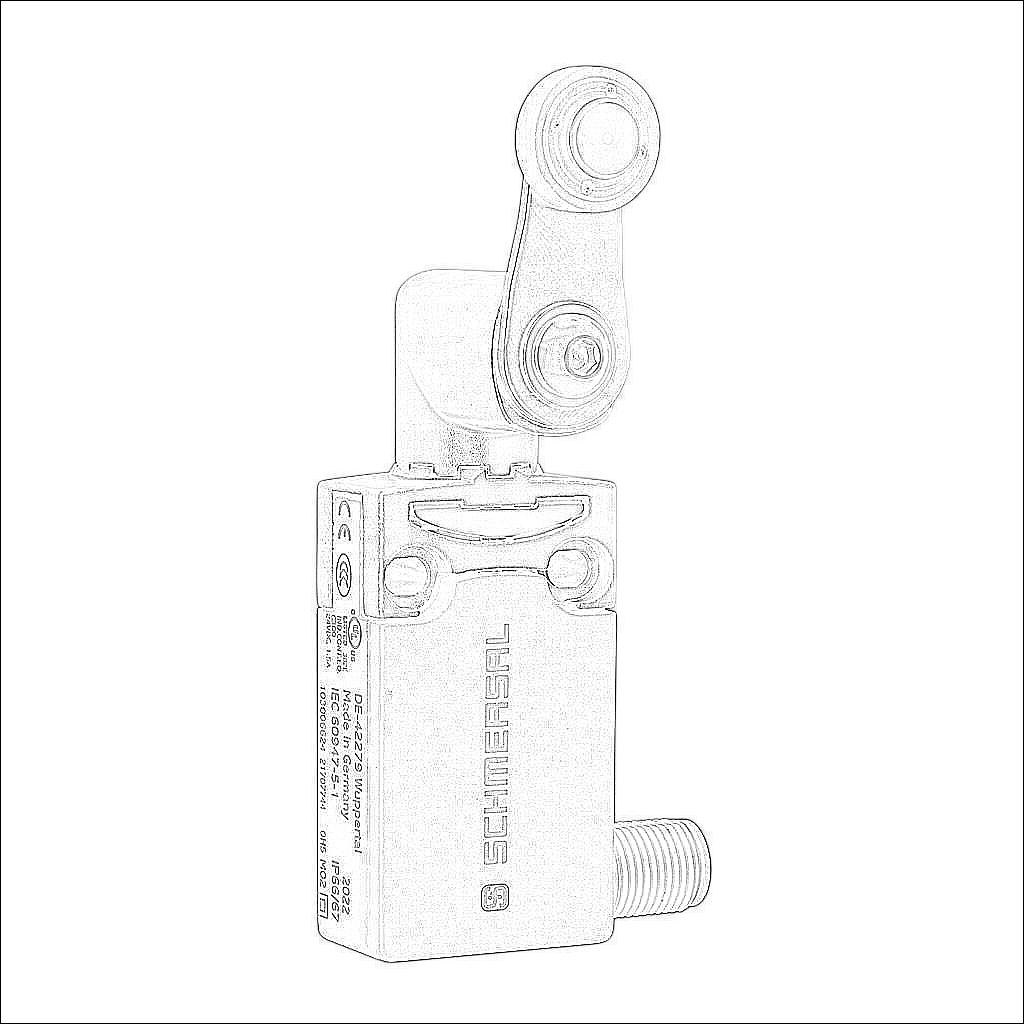

| Item | Limit switch | |
| Switch Type | Compact | |
| Actuator Type | Side rotary lever with plastic roller | |
| Head Type | 45-degree adjustable | |
| Contact Type | (1) N.O./(1) N.C. | |
| Action | Slow action break before make | |
| Reset | No | |
| Body Width | 31mm | |
| Mounting Hole Spacing | 20-22mm | |
| Material | Die-cast zinc with plastic base | |
| IP Rating | IP66 IP67 | |
| Operating Temperature | -30 to 80 deg C | |
| Connection | (1) 4-pin M12 quick-disconnect | |
| Cable Exit | Right | |
