| Technical Data | ||
|---|---|---|
| Brand | RHINO | |

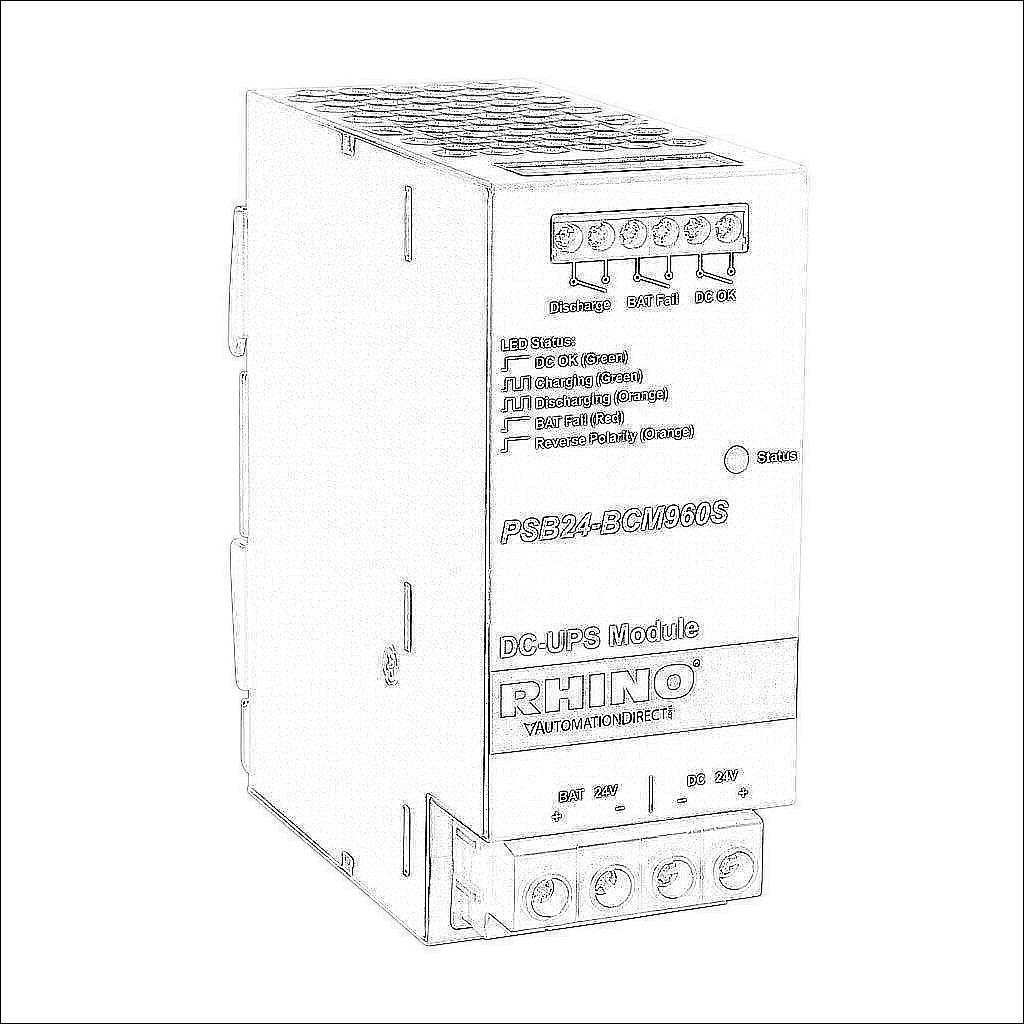

| Item | Battery control module | |
| Number of Inputs | 1 | |
| Nominal Input Voltage | 24 VDC | |
| Input voltage range | 24-28 VDC | |
| Nominal Output Voltage | 24 VDC | |
| Output Voltage Range | 23-28 VDC | |
| Amperage Rating | 40A | |
| Protection Type(s) |
| |
| Indicating Type | Tri-color LED for status indication and (3) output signals | |
| Alarm Contact for Operation Monitoring | Yes | |
| Remote On/Off | No | |
| Housing Material | Metal | |
| Mounting | 35mm DIN rail | |
| Connector Type | Screw terminals | |
| Requires | Power supply, 24V battery (user-supplied) | |
