| Technical Data | ||
|---|---|---|

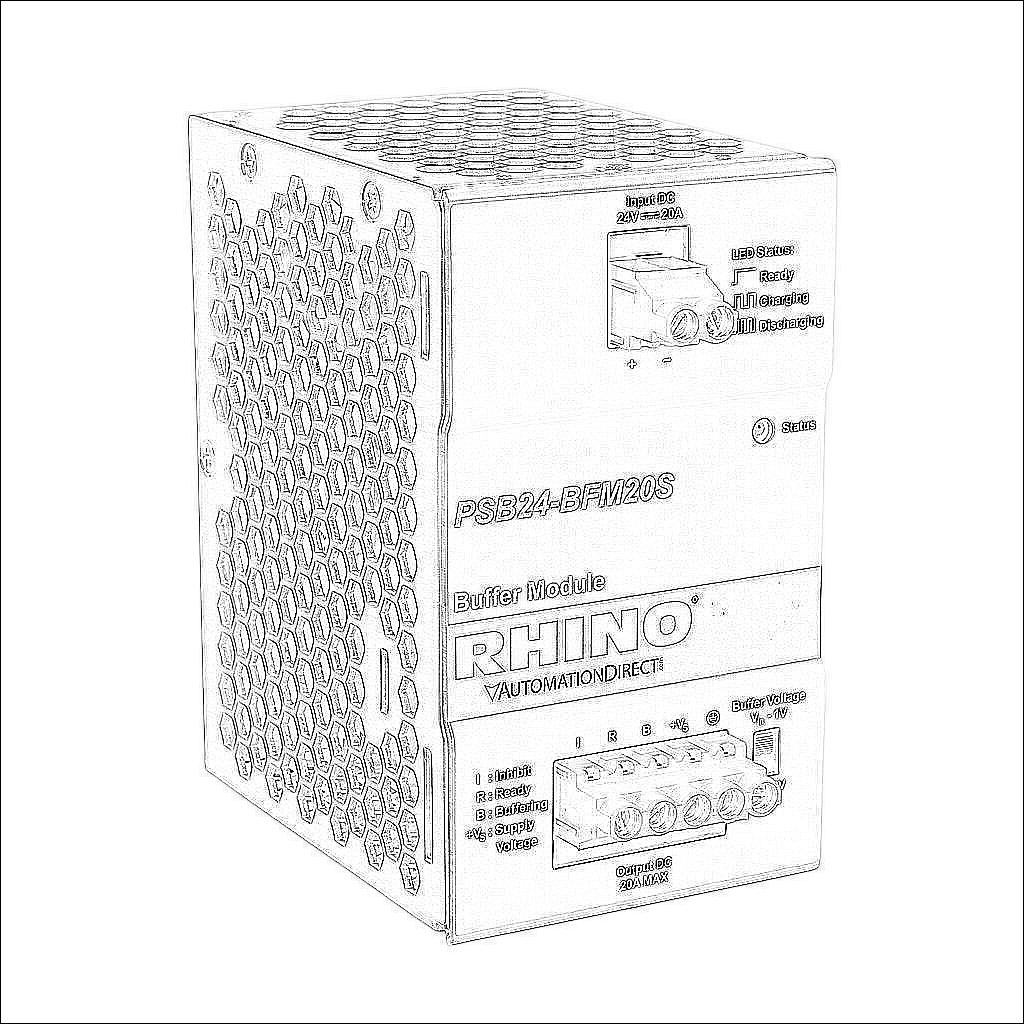

| Brand | RHINO | |
| Item | Buffer module | |
| Number of Inputs | 1 | |
| Nominal Input Voltage | 24 VDC | |
| Input voltage range | 23-28 VDC | |
| Nominal Output Voltage | 24 VDC | |
| Output Voltage Range | 23-28 VDC | |
| Amperage Rating | 20A | |
| Start Buffering Voltage Adjustment | Selection switch | |
| Buffer Time | 250 msec hold-up at 20A or 5 sec at 1A | |
| Protection Type(s) |
| |
| Indicating Type | Output signals for remote stand-by mode and buffering mode indication | |
| Alarm Contact for Operation Monitoring | Yes | |
| Remote On/Off | Yes | |
| Housing Material | Metal | |
| Mounting | 35mm DIN rail | |
| Connector Type | Screw terminals | |
| Requires | PSB24 power supply | |
| Application | Hazardous location rated | |
