| Technical Data | ||
|---|---|---|
| Brand | RHINO | |

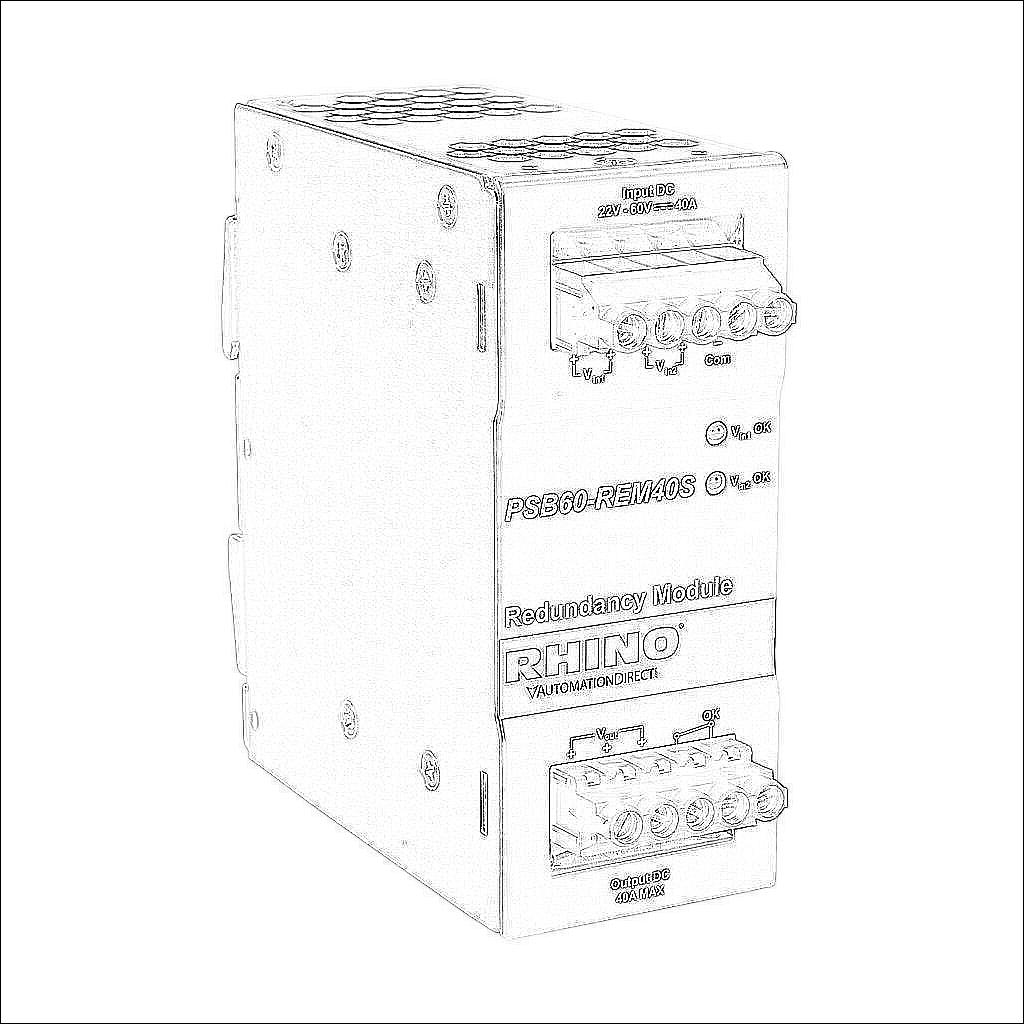

| Item | Redundancy module | |
| Number of Inputs | 2 | |
| Nominal Input Voltage | 24/48 VDC | |
| Input voltage range | 24-48 VDC | |
| Nominal Output Voltage | 24/48 VDC | |
| Output Voltage Range | 24-48 VDC | |
| Amperage Rating | 40A | |
| Protection Type(s) |
| |
| Alarm Contact for Operation Monitoring | Yes | |
| Active Current Sharing | No | |
| Housing Material | Metal | |
| Mounting | 35mm DIN rail | |
| Connector Type | Screw terminals | |
| Application | Hazardous location rated | |
| Requires | (2) matched 24 or 48 VDC power supplies | |
