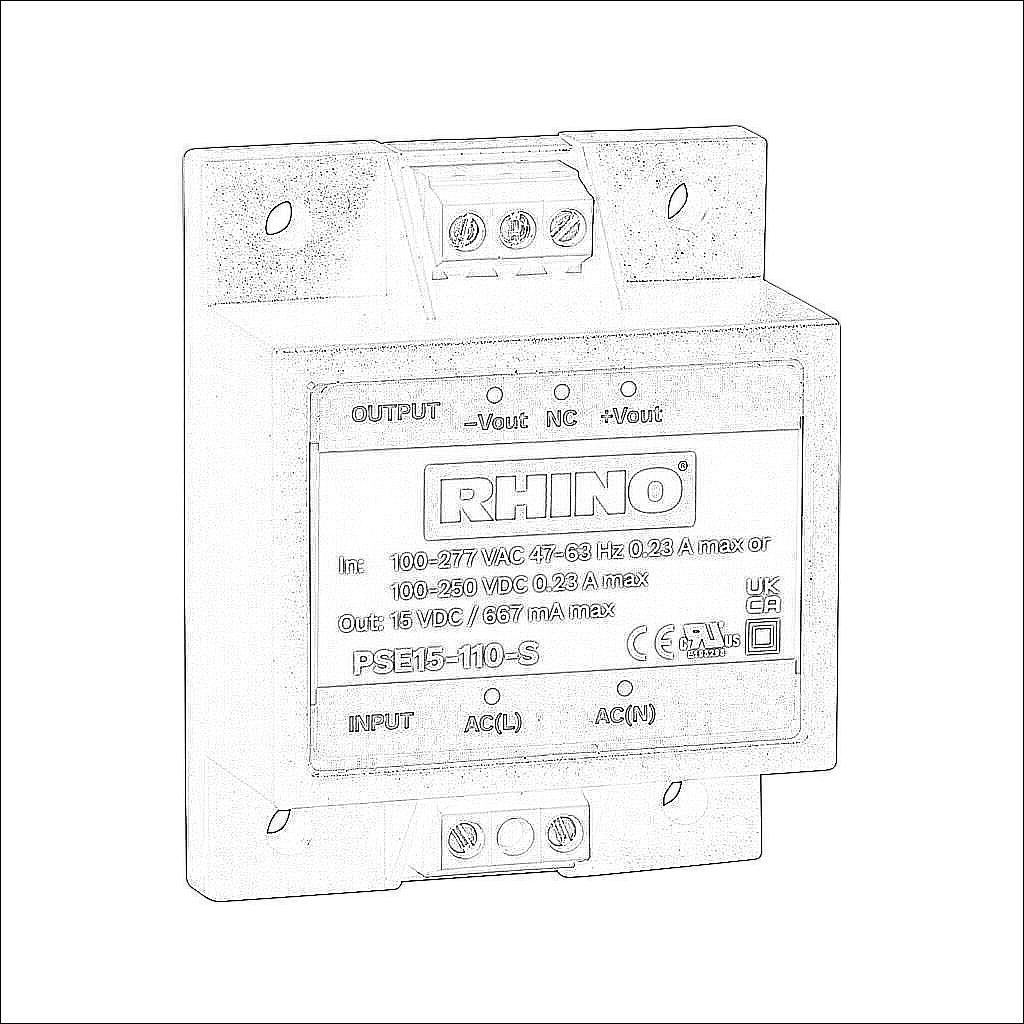

| Technical Data | ||
|---|---|---|
| Brand | RHINO | |
| Item | Power supply | |
| Series | PSE-S | |
| Power Supply Type | Switching | |
| Efficiency | 86% @ 115 VAC | |
| Output Configuration | Single output | |
| Output | 15 VDC @ 0.6A/10W | |
| Output Voltage Range | 15 VDC | |
| Input voltage range | 100-277 VAC (47-440 Hz)/100-250 VDC | |
| Number of Input Phases | 1 | |
| Protection Type(s) |
| |
| Remote On/Off | No | |
| Voltage Monitoring | Yes | |
| Enclosure Type | Encapsulated | |
| Housing Material | Plastic resin and fiberglass | |
| Mounting | Chassis | |
| Connector Type | Screw terminals | |
| NEC Class 2 | No | |
| Integrated UPS Battery Control | No | |
| Operating Temperature | -40 to +70 deg C | |
