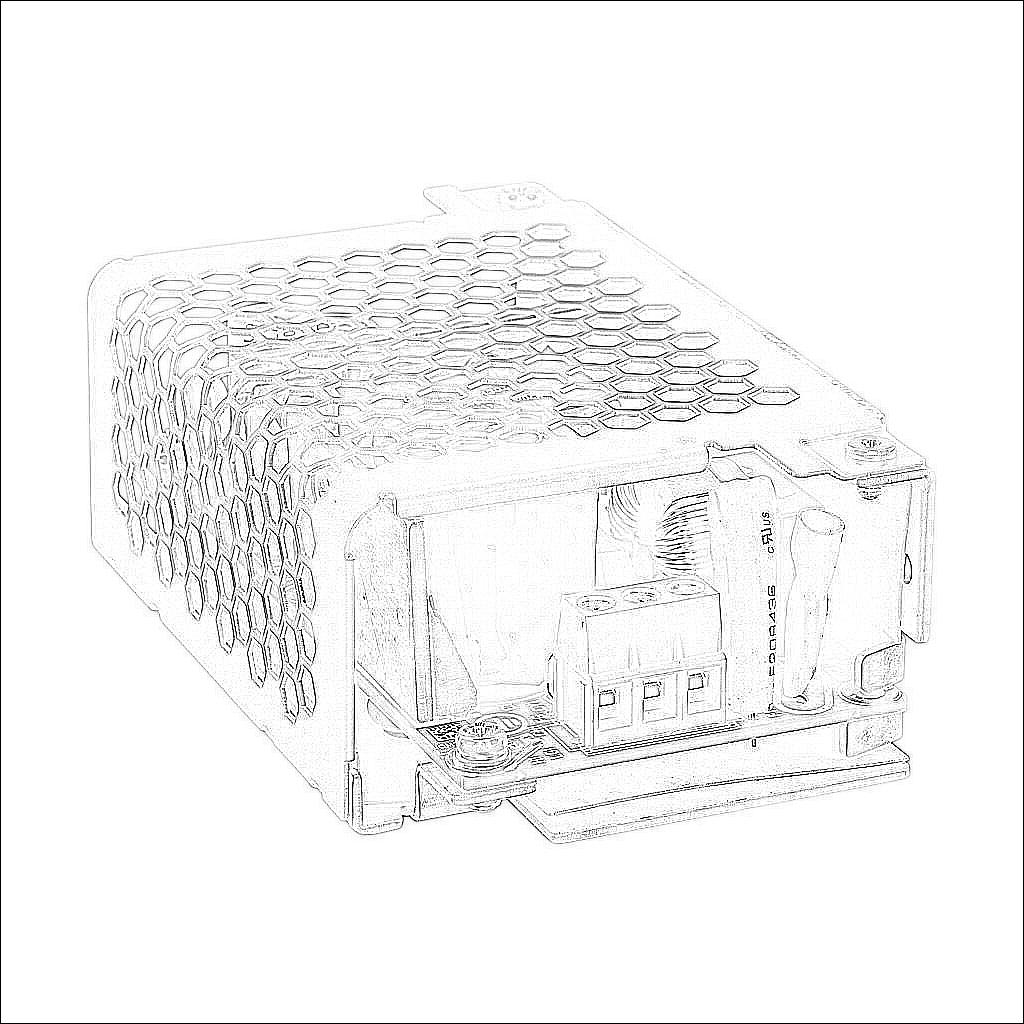

PSFA12-060-U

PSFA12-060-U

RHINO SELECT PSFA series switching power supply, 13.8 VDC @ 4.3A/60W (adjustable), 120-240 VAC nominal input, 1-phase, open frame, galvanized steel housing, chassis mount, screw terminals.

$60
/
Technical Data
BrandRHINO SELECT
ItemPower supply
SeriesPSFA
Power Supply TypeSwitching
Efficiency85% @ 115 VAC, 86% @ 230 VAC
Output ConfigurationSingle output
Output13.8 VDC @ 4.3A/60W (adjustable)
Output Voltage Range13.5-14 VDC
Input voltage range90-264 VAC
Number of Input Phases1
Protection Type(s)
  • overvoltage
  • short circuit
  • overload
  • over-temperature
Remote On/OffNo
Voltage MonitoringYes
Enclosure TypeOpen frame
Housing MaterialGalvanized steel
IP RatingIP10
MountingChassis
Connector TypeScrew terminals
NEC Class 2No
Integrated UPS Battery ControlYes
Operating Temperature-20 to 70 deg C
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
