PSH-12-120

PSH-12-120

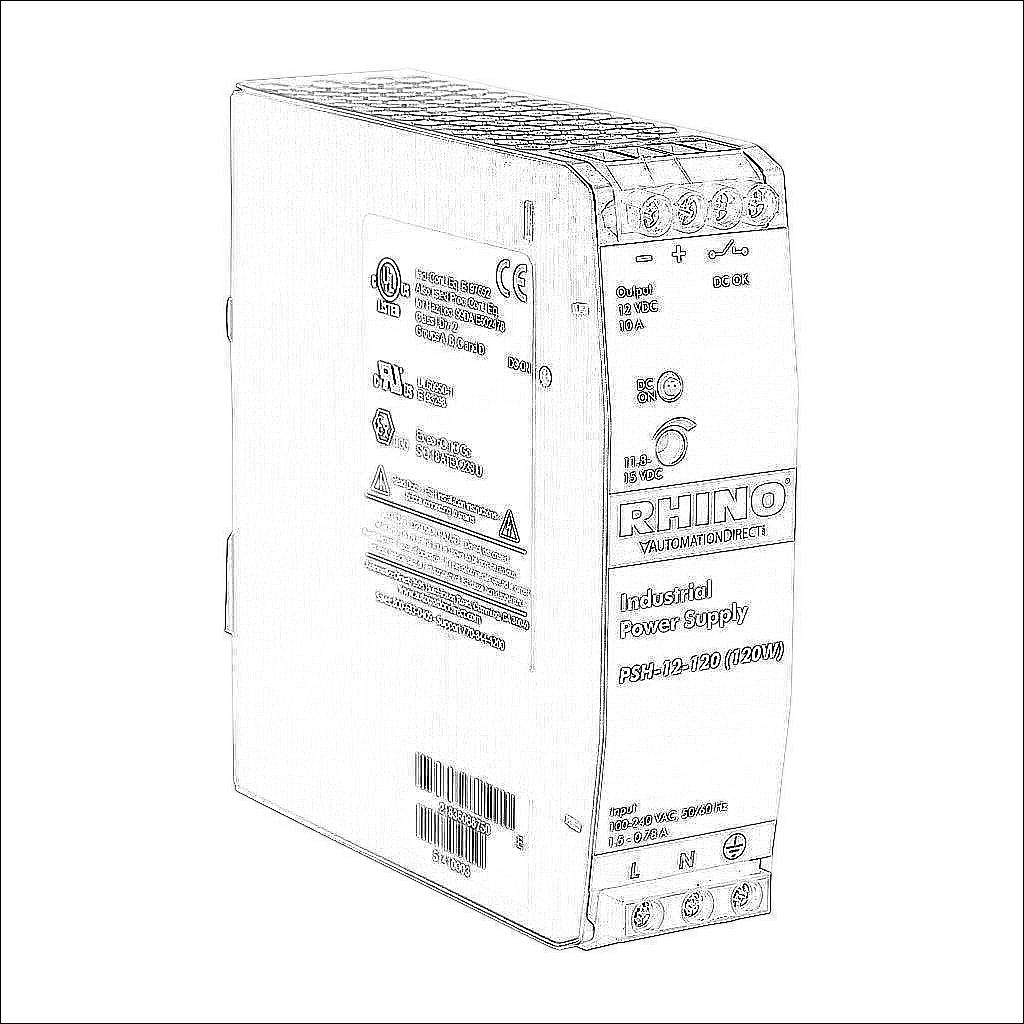

RHINO PRO PSH series switching power supply, 12 VDC @ 10A/120W (adjustable), 120/240 VAC nominal input, 1-phase, enclosed, metal housing, 35mm DIN rail mount, screw terminals, hazardous location rated.

$228.75
/
Technical Data
BrandRHINO PRO
ItemPower supply
SeriesPSH
Power Supply TypeSwitching
Efficiency91% @ 115 VAC, 93% @ 230 VAC
Output ConfigurationSingle output
Output12 VDC @ 10A/120W (adjustable)
Output Voltage Range11.8-15 VDC
Input voltage range85-264 VAC
Number of Input Phases1
Protection Type(s)
  • overvoltage
  • short circuit
  • overload
  • over-temperature
Remote On/OffNo
Voltage MonitoringYes
Enclosure TypeEnclosed
Housing MaterialMetal
IP RatingIP20
Mounting35mm DIN rail
Connector TypeScrew terminals
NEC Class 2No
Integrated UPS Battery ControlNo
Operating Temperature-40 to +70 deg C
Power Boost150% for 4s
ApplicationHazardous location rated
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
