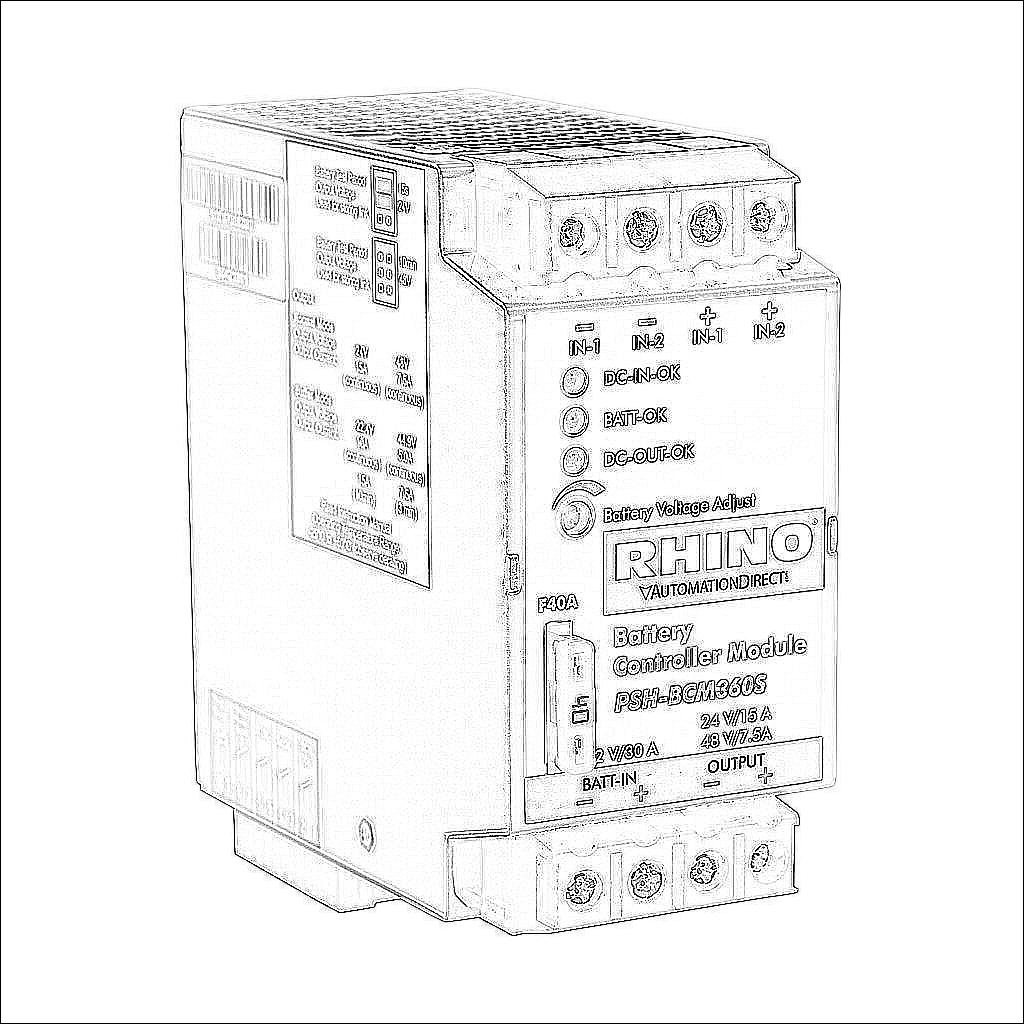

PSH-BCM360S

PSH-BCM360S

RHINO battery control module, 2 inputs, 24/48 VDC nominal input, 23-27 VDC / 47-55 VDC output, 15A at 24 VDC, 7.5A at 48 VDC, alarm contact for operation monitoring, screw terminals. Requires power supply, 12V battery (user-supplied).

$362.50
/
Technical Data
BrandRHINO
ItemBattery control module
Number of Inputs2
Nominal Input Voltage24/48 VDC
Input voltage range24-28 VDC / 48-56 VDC
Nominal Output Voltage24/48 VDC
Output Voltage Range23-27 VDC / 47-55 VDC
Amperage Rating15A at 24 VDC, 7.5A at 48 VDC
Protection Type(s)
  • overvoltage
  • overcurrent
  • battery overcharge
  • reverse polarity
Indicating TypeSingle color LED for status indication and (3) output signals
Alarm Contact for Operation MonitoringYes
Remote On/OffYes
Housing MaterialMetal
Mounting35mm DIN rail
Connector TypeScrew terminals
RequiresPower supply, 12V battery (user-supplied)
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
