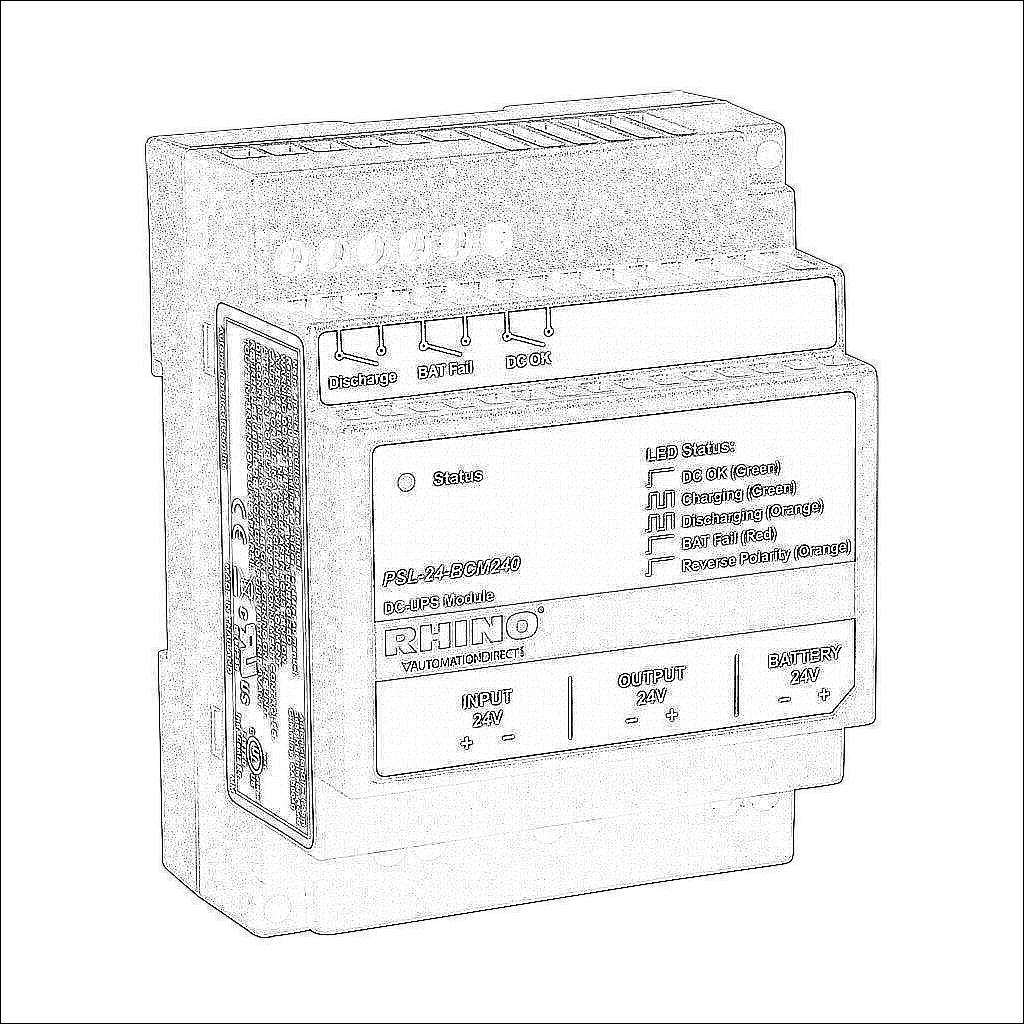

PSL-24-BCM240

PSL-24-BCM240

RHINO battery control module, 1 input, 24 VDC nominal input, 23-28 VDC output, 10A, alarm contact for operation monitoring, screw terminals. Requires power supply, 24V battery (user-supplied).

$58.13
/
Technical Data
BrandRHINO
ItemBattery control module
Number of Inputs1
Nominal Input Voltage24 VDC
Input voltage range24-28 VDC
Nominal Output Voltage24 VDC
Output Voltage Range23-28 VDC
Amperage Rating10A
Protection Type(s)
  • overvoltage
  • overcurrent
  • reverse polarity
  • over-temperature
Indicating TypeTri-color LED for status indication and (3) output signals
Alarm Contact for Operation MonitoringYes
Remote On/OffNo
Housing MaterialPlastic
Mounting35mm DIN rail
Connector TypeScrew terminals
RequiresPower supply, 24V battery (user-supplied)
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
