| Technical Data | ||
|---|---|---|
| Brand | RHINO SELECT | |

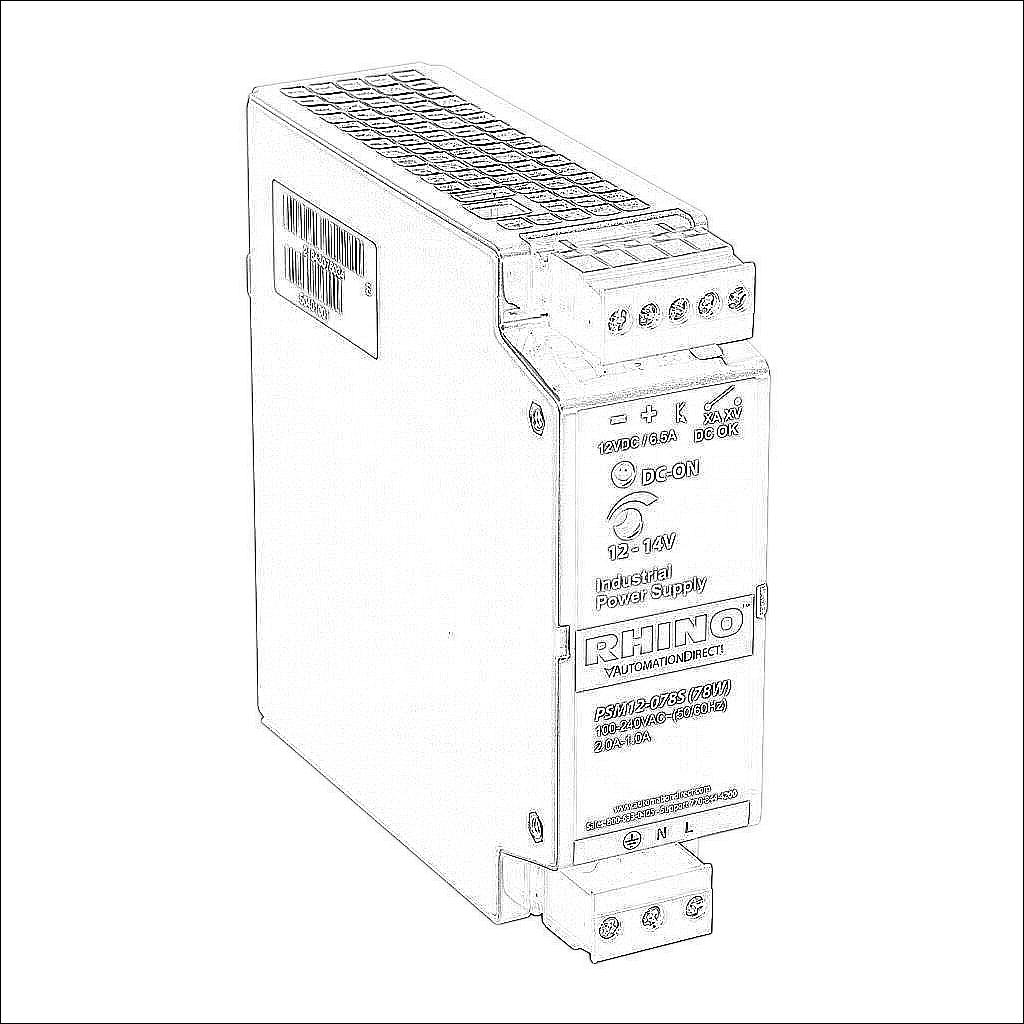

| Item | Power supply | |
| Series | PSM | |
| Power Supply Type | Switching | |
| Efficiency | 81% @ 115 VAC, 82% @ 230 VAC | |
| Output Configuration | Single output | |
| Output | 12 VDC @ 6.5A/78W (adjustable) | |
| Output Voltage Range | 12-14 VDC | |
| Input voltage range | 85-264 VAC | |
| Number of Input Phases | 1 | |
| Protection Type(s) |
| |
| Remote On/Off | Yes | |
| Voltage Monitoring | Yes | |
| Enclosure Type | Enclosed | |
| Housing Material | Metal | |
| IP Rating | IP20 | |
| Mounting | 35mm DIN rail | |
| Connector Type | Removable screw terminal | |
| NEC Class 2 | No | |
| Integrated UPS Battery Control | No | |
| Operating Temperature | -25 to 70 deg C | |
