| Technical Data | ||
|---|---|---|

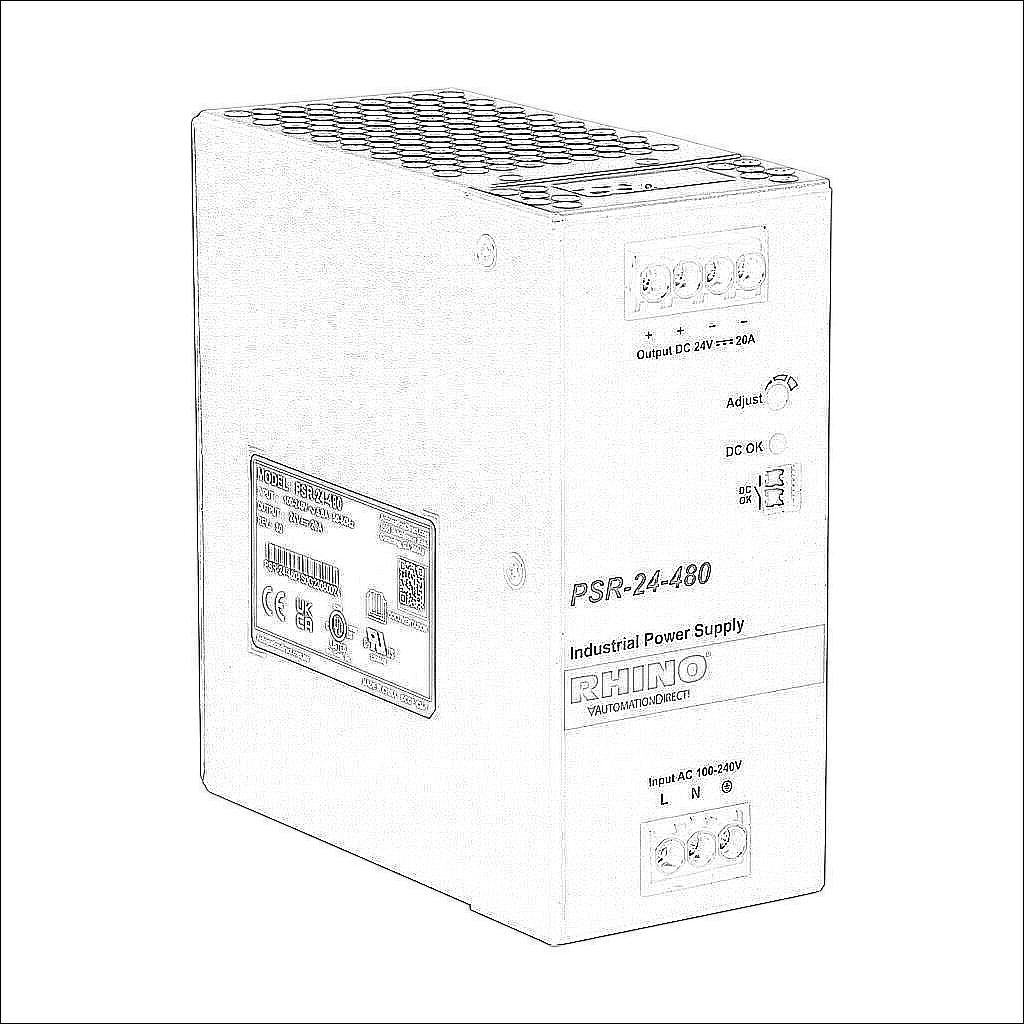

| Brand | RHINO | |
| Item | Power supply | |
| Series | PSR | |
| Power Supply Type | Switching | |
| Efficiency | 91.5% @ 115 VAC, 95% @ 230 VAC | |
| Output Configuration | Single output | |
| Output | 24 VDC @ 20A/480W (adjustable) | |
| Output Voltage Range | 24-28 VDC | |
| Input voltage range | 90-264 VAC | |
| Input Voltage Selection Type | Automatic | |
| Number of Input Phases | 1 | |
| Protection Type(s) |
| |
| Remote On/Off | No | |
| Voltage Monitoring | Yes | |
| Enclosure Type | Enclosed | |
| Housing Material | Metal | |
| IP Rating | IP20 | |
| Mounting | 35mm DIN rail | |
| Connector Type | Screw terminals | |
| NEC Class 2 | No | |
| Integrated UPS Battery Control | No | |
| Operating Temperature | -30 to 70 deg C | |
