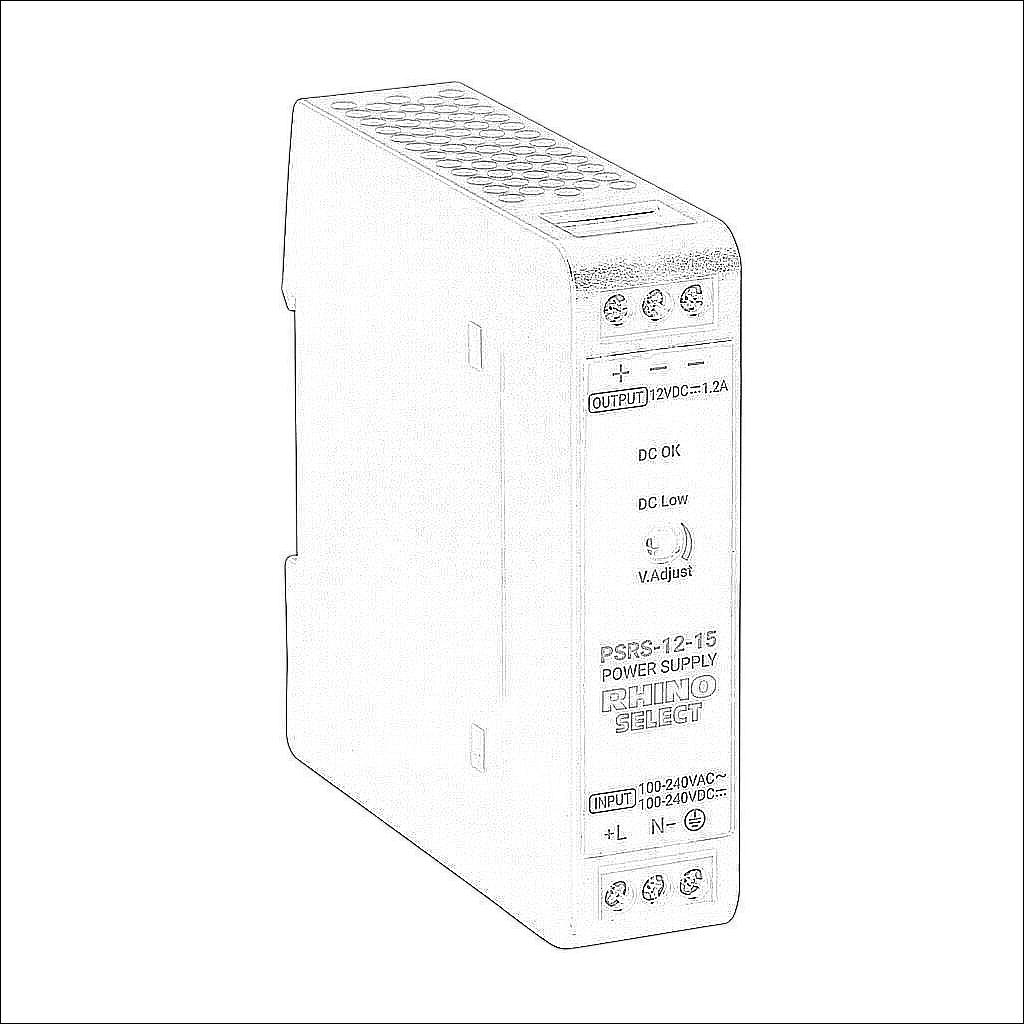

| Technical Data | ||
|---|---|---|
| Brand | RHINO SELECT | |
| Item | Power supply | |
| Series | PSRS | |
| Power Supply Type | Switching | |
| Efficiency | 78% @ 115 VAC, 74% @ 230 VAC | |
| Output Configuration | Single output | |
| Output | 12 VDC @ 1.2A/14.4W (adjustable) | |
| Output Voltage Range | 10.8-13.8 VDC | |
| Input voltage range | 85-264 VAC/90-350 VDC | |
| Number of Input Phases | 1 | |
| Protection Type(s) |
| |
| Remote On/Off | No | |
| Voltage Monitoring | Yes | |
| Enclosure Type | Enclosed | |
| Housing Material | Plastic | |
| IP Rating | IP20 | |
| Mounting | 35mm DIN rail | |
| Connector Type | Screw terminals | |
| NEC Class 2 | No | |
| Integrated UPS Battery Control | No | |
| Operating Temperature | -20 to +70 deg C | |
| Power Boost | 120% for 10s | |
