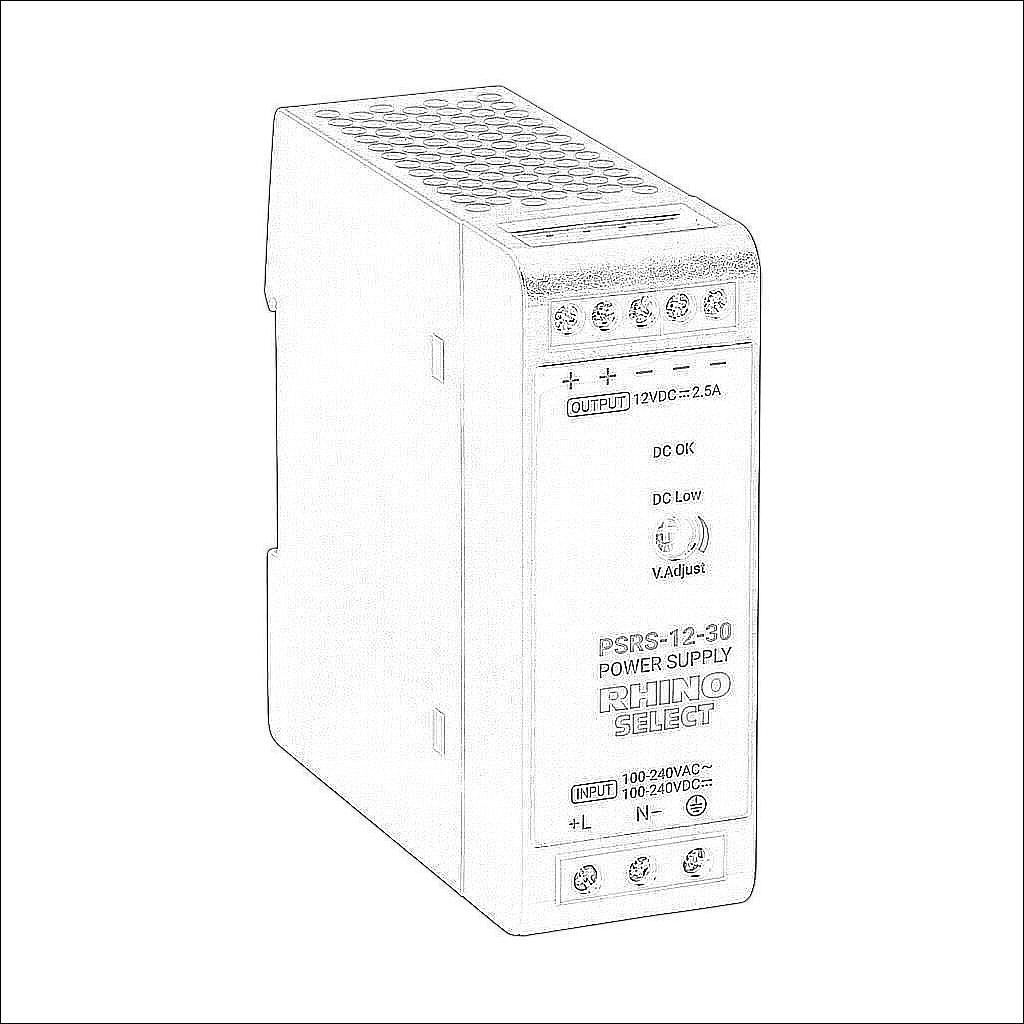

PSRS-12-30

PSRS-12-30

RHINO SELECT PSRS series switching power supply, 12 VDC @ 2.5A/30W (adjustable), 120/240 VAC nominal input, 1-phase, enclosed, plastic housing, 35mm DIN rail mount, screw terminals.

$53.75
/
Technical Data
BrandRHINO SELECT
ItemPower supply
SeriesPSRS
Power Supply TypeSwitching
Efficiency82% @ 115 VAC, 81% @ 230 VAC
Output ConfigurationSingle output
Output12 VDC @ 2.5A/30W (adjustable)
Output Voltage Range10.8-13.8 VDC
Input voltage range85-264 VAC/90-350 VDC
Number of Input Phases1
Protection Type(s)
  • overvoltage
  • short circuit
  • overload
  • over-temperature
Remote On/OffNo
Voltage MonitoringYes
Enclosure TypeEnclosed
Housing MaterialPlastic
IP RatingIP20
Mounting35mm DIN rail
Connector TypeScrew terminals
NEC Class 2No
Integrated UPS Battery ControlNo
Operating Temperature-20 to +70 deg C
Power Boost120% for 10s
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
