PSRS-24-15

PSRS-24-15

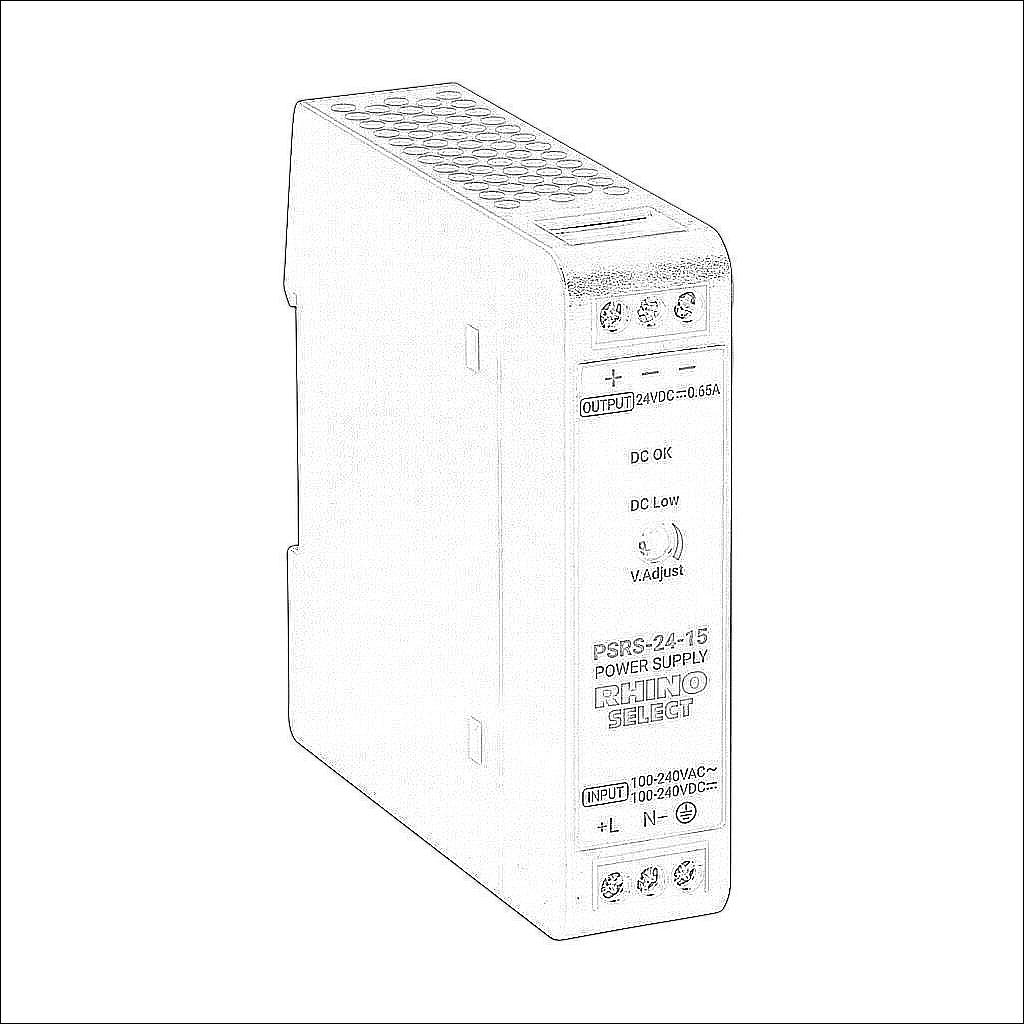

RHINO SELECT PSRS series switching power supply, 24 VDC @ 0.65A/15W (adjustable), 120/240 VAC nominal input, 1-phase, enclosed, plastic housing, 35mm DIN rail mount, screw terminals.

$47.50
/
Technical Data
BrandRHINO SELECT
ItemPower supply
SeriesPSRS
Power Supply TypeSwitching
Efficiency75% @ 115 VAC, 75% @ 230 VAC
Output ConfigurationSingle output
Output24 VDC @ 0.65A/15W (adjustable)
Output Voltage Range21.6-27.6 VDC
Input voltage range85-264 VAC/90-350 VDC
Number of Input Phases1
Protection Type(s)
  • overvoltage
  • short circuit
  • overload
  • over-temperature
Remote On/OffNo
Voltage MonitoringYes
Enclosure TypeEnclosed
Housing MaterialPlastic
IP RatingIP20
Mounting35mm DIN rail
Connector TypeScrew terminals
NEC Class 2No
Integrated UPS Battery ControlNo
Operating Temperature-20 to +70 deg C
Power Boost120% for 10s
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
