PSS24-155-U

PSS24-155-U

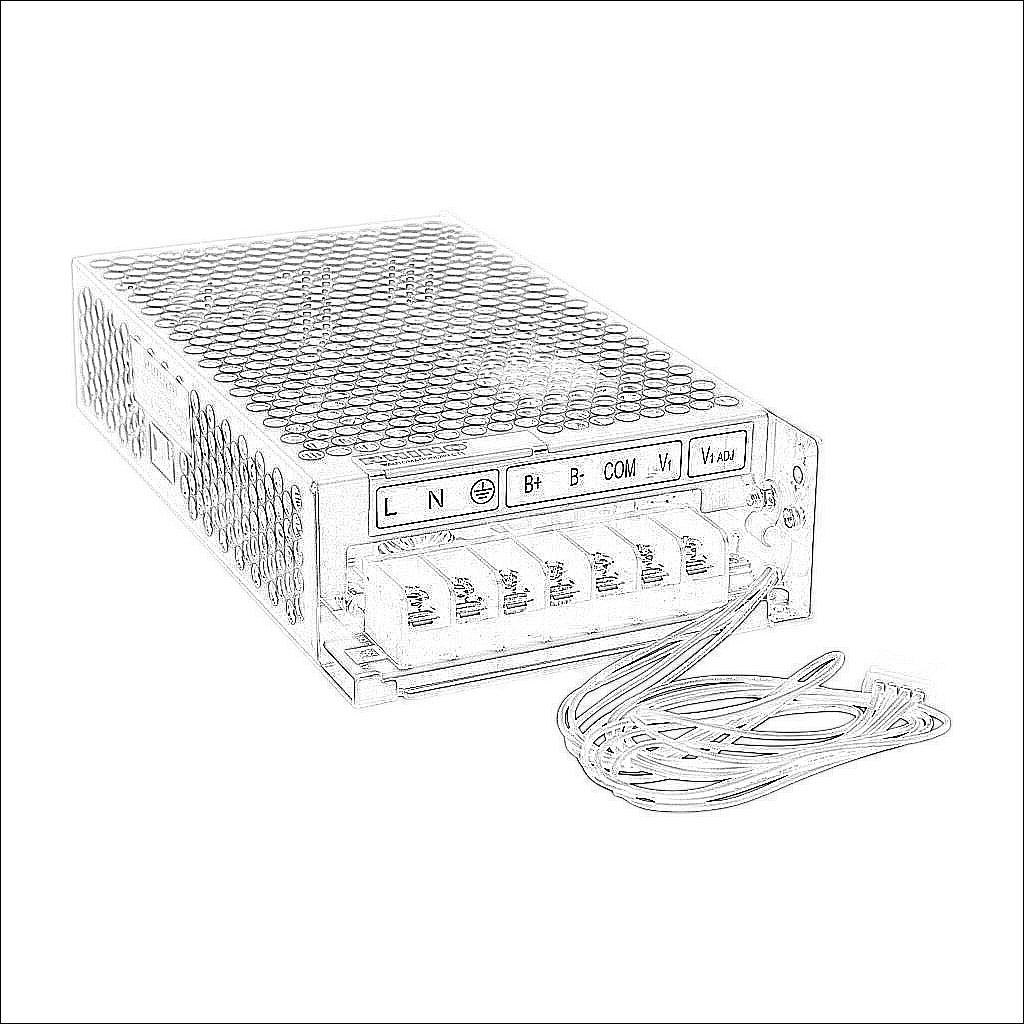

RHINO SELECT PSS series switching power supply, 27.8 VDC @ 5.5A/151W (adjustable), 120/240 VAC nominal input, 1-phase, enclosed, galvanized steel housing, chassis mount, screw terminals.

$73.75
/
Technical Data
BrandRHINO SELECT
ItemPower supply
SeriesPSS
Power Supply TypeSwitching
Efficiency88% @ 115 VAC, 89% @ 230 VAC
Output ConfigurationSingle output
Output27.8 VDC @ 5.5A/151W (adjustable)
Output Voltage Range24-28 VDC
Input voltage range85-264 VAC/120-375 VDC
Input Voltage Selection TypeSwitch
Number of Input Phases1
Protection Type(s)
  • overvoltage
  • short circuit
  • overload
  • over-temperature
Remote On/OffNo
Voltage MonitoringYes
Enclosure TypeEnclosed
Housing MaterialGalvanized steel
IP RatingIP10
MountingChassis
Connector TypeScrew terminals
NEC Class 2No
Integrated UPS Battery ControlYes
Operating Temperature-20 to 70 deg C
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
