| Technical Data | ||
|---|---|---|
| Brand | AutomationDirect | |

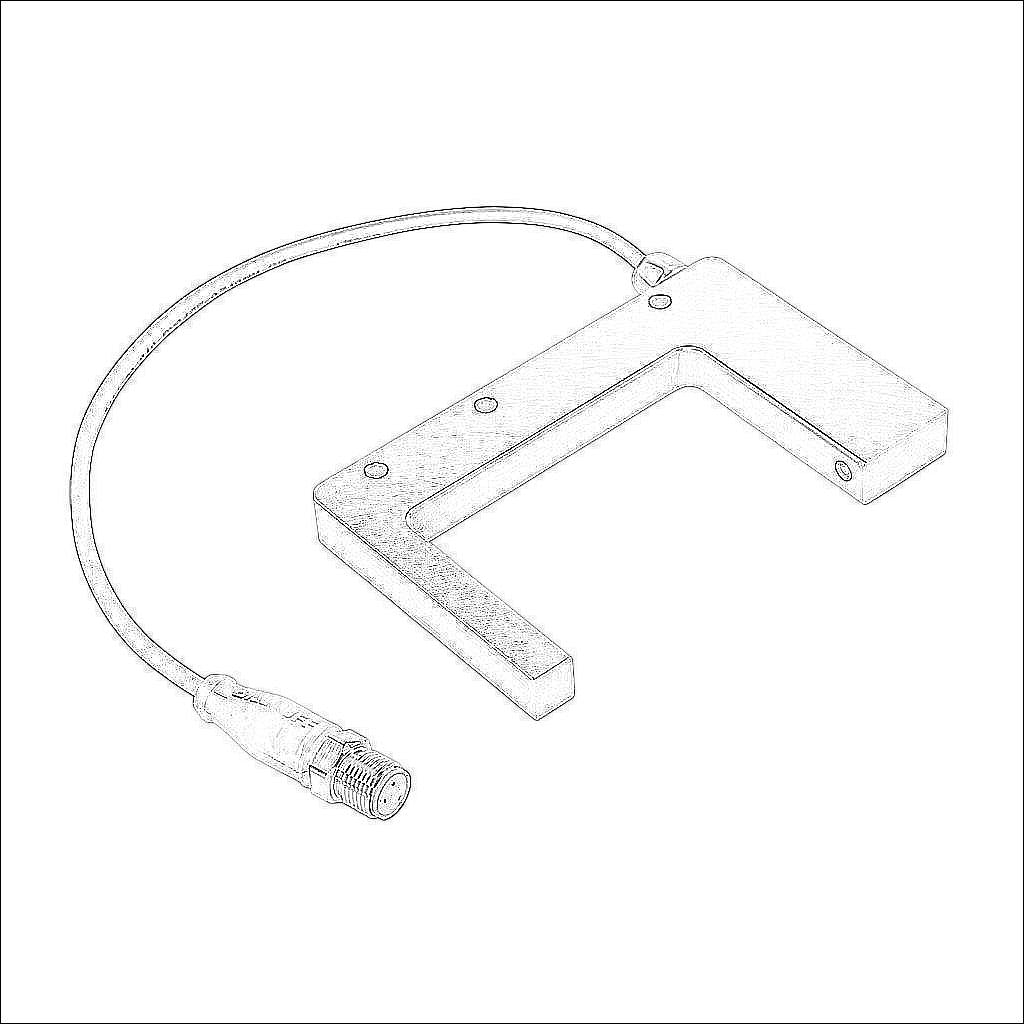

| Item | Photoelectric fork sensor | |
| Shape | U-frame | |
| Housing Size | 115 x 86 x 12mm | |
| IP Rating | IP67 IP69K | |
| Application | Harsh duty and food and beverage | |
| Housing Material | Stainless steel | |
| Sensing Method | Through-beam | |
| Operating Voltage | 10-30 VDC | |
| Switching Output | PNP | |
| Sensing Distance | 0-80mm | |
| Operation Mode | Complementary light-on/dark-on | |
| Switching Frequency | 3 kHz | |
| Light Emission | Visible red | |
| Cable Length | 9.8in/250mm | |
| Connection | 4-pin M12 quick-disconnect | |
| Additional Information | Purchase cable separately | |
