| Technical Data | ||
|---|---|---|
| Brand | AutomationDirect | |

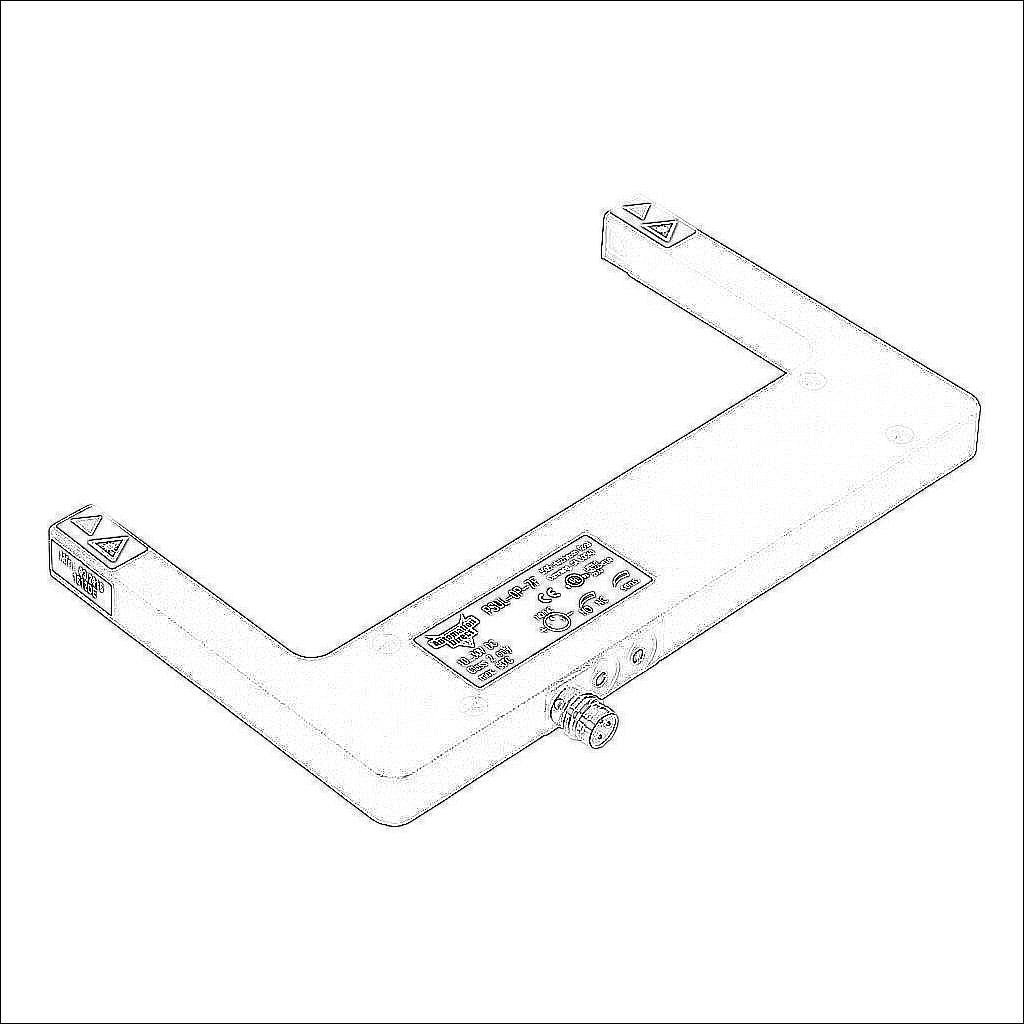

| Item | Photoelectric fork sensor | |
| Shape | U-frame | |
| Housing Size | 140 x 93 x 10mm | |
| IP Rating | IP67 | |
| Application | Laser and standard duty | |
| Housing Material | Die-cast zinc | |
| Sensing Method | Through-beam | |
| Operating Voltage | 10-30 VDC | |
| Switching Output | PNP | |
| Sensing Distance | 0-120mm | |
| Sensitivity | Potentiometer | |
| Operation Mode | Selectable light-on/dark-on | |
| Switching Frequency | 5 kHz | |
| Light Emission | Class 1 red laser | |
| Connection | 3-pin M8 quick-disconnect | |
| Additional Information | Purchase cable separately | |
