| Technical Data | ||
|---|---|---|

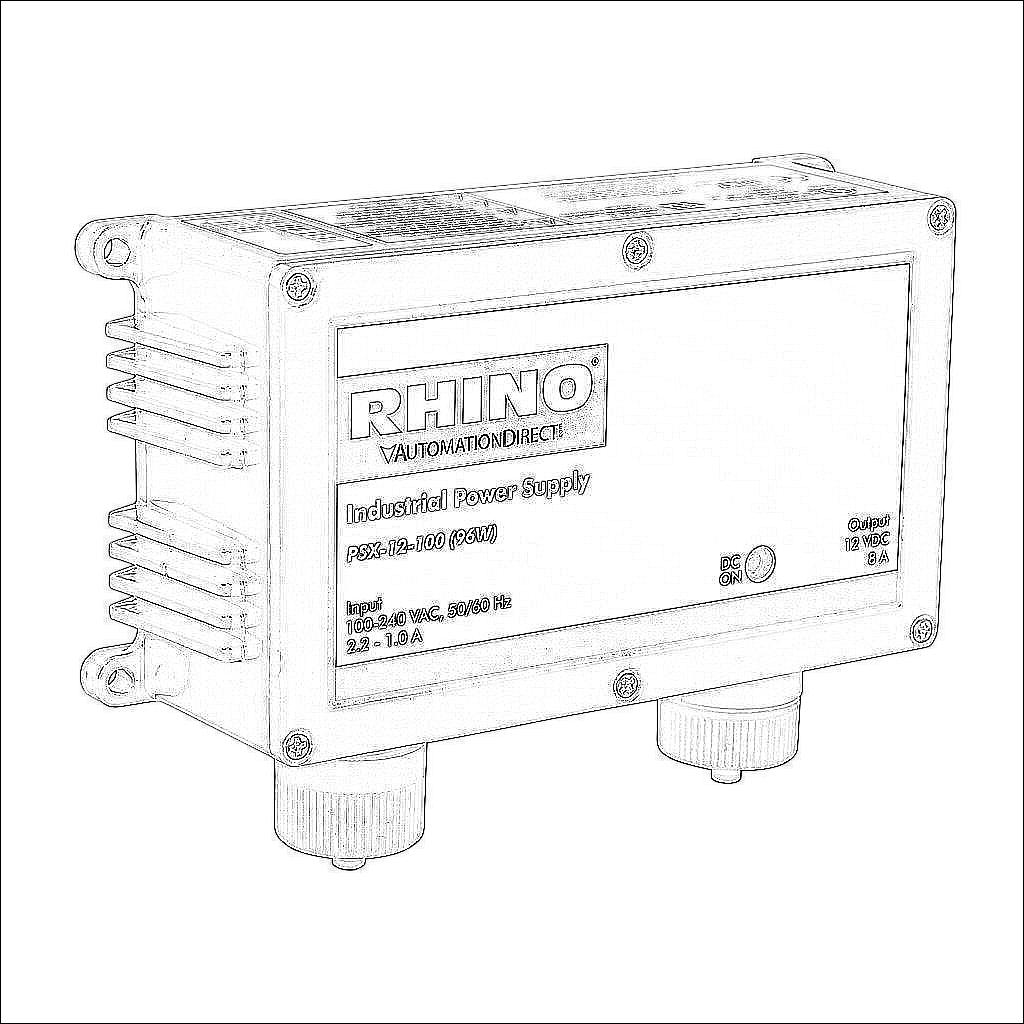

| Brand | RHINO TOUGH | |
| Item | Power supply | |
| Series | PSX | |
| Power Supply Type | Switching | |
| Efficiency | 82% @ 115 VAC, 84% @ 230 VAC | |
| Output Configuration | Single output | |
| Output | 12 VDC @ 8A/96W (adjustable) | |
| Output Voltage Range | 12-15 VDC | |
| Input voltage range | 85-264 VAC/85-375 VDC | |
| Number of Input Phases | 1 | |
| Protection Type(s) |
| |
| Remote On/Off | No | |
| Voltage Monitoring | Yes | |
| Enclosure Type | Encapsulated | |
| Housing Material | Die-cast aluminum | |
| IP Rating | IP67 | |
| Mounting | Chassis | |
| Connector Type | Screw connectors | |
| NEC Class 2 | No | |
| Integrated UPS Battery Control | No | |
| Operating Temperature | -40 to 85 deg C | |
| Application | Hazardous location rated | |
