PSX-24-120

PSX-24-120

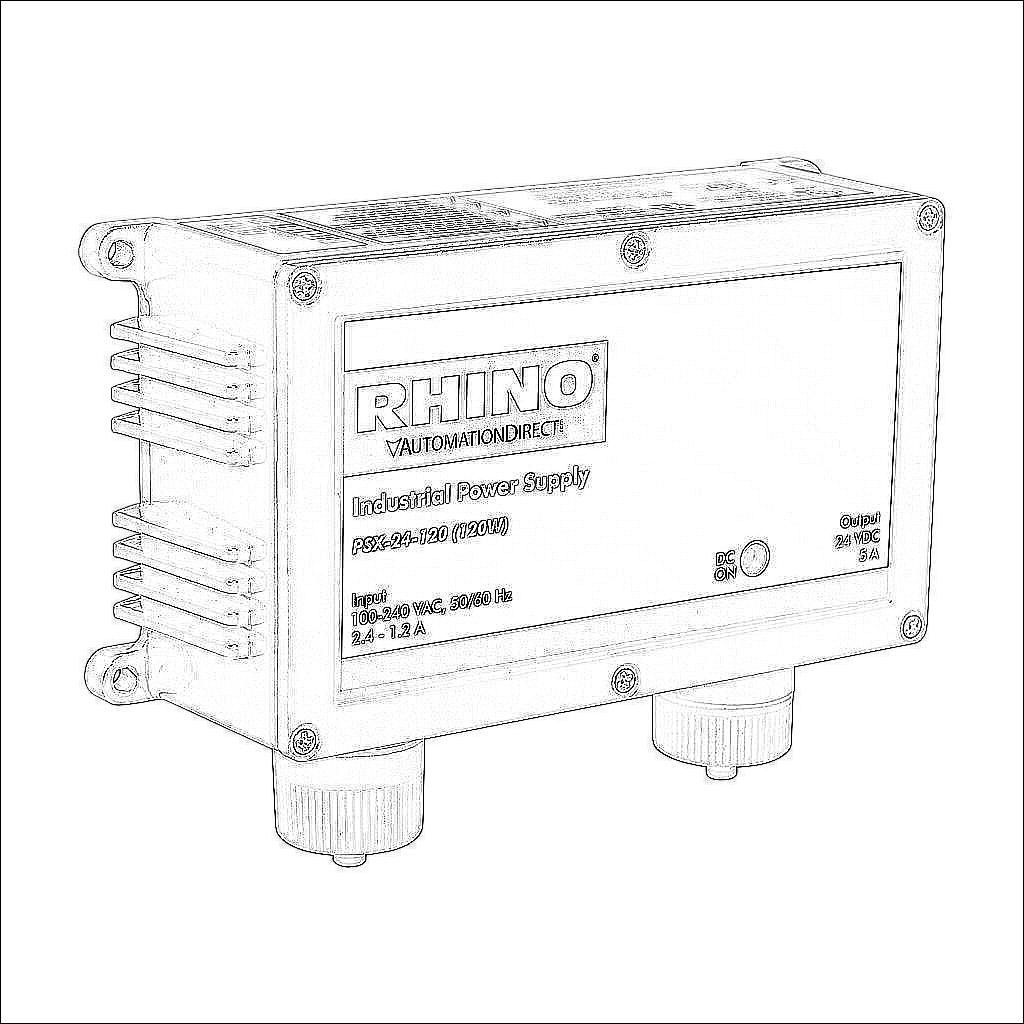

RHINO TOUGH PSX series switching power supply, 24 VDC @ 5A/120W (adjustable), 120/240 VAC or 85-375 VDC nominal input, 1-phase, encapsulated, die-cast aluminum housing, chassis mount, screw connectors, hazardous location rated.

$432.50
/
Technical Data
BrandRHINO TOUGH
ItemPower supply
SeriesPSX
Power Supply TypeSwitching
Efficiency82% @ 115 VAC, 86% @ 230 VAC
Output ConfigurationSingle output
Output24 VDC @ 5A/120W (adjustable)
Output Voltage Range24-28 VDC
Input voltage range85-264 VAC/85-375 VDC
Number of Input Phases1
Protection Type(s)
  • overvoltage
  • short circuit
  • overload
Remote On/OffNo
Voltage MonitoringYes
Enclosure TypeEncapsulated
Housing MaterialDie-cast aluminum
IP RatingIP67
MountingChassis
Connector TypeScrew connectors
NEC Class 2No
Integrated UPS Battery ControlNo
Operating Temperature-40 to 85 deg C
ApplicationHazardous location rated
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
