| Technical Data | ||
|---|---|---|
| Brand | ProSense | |

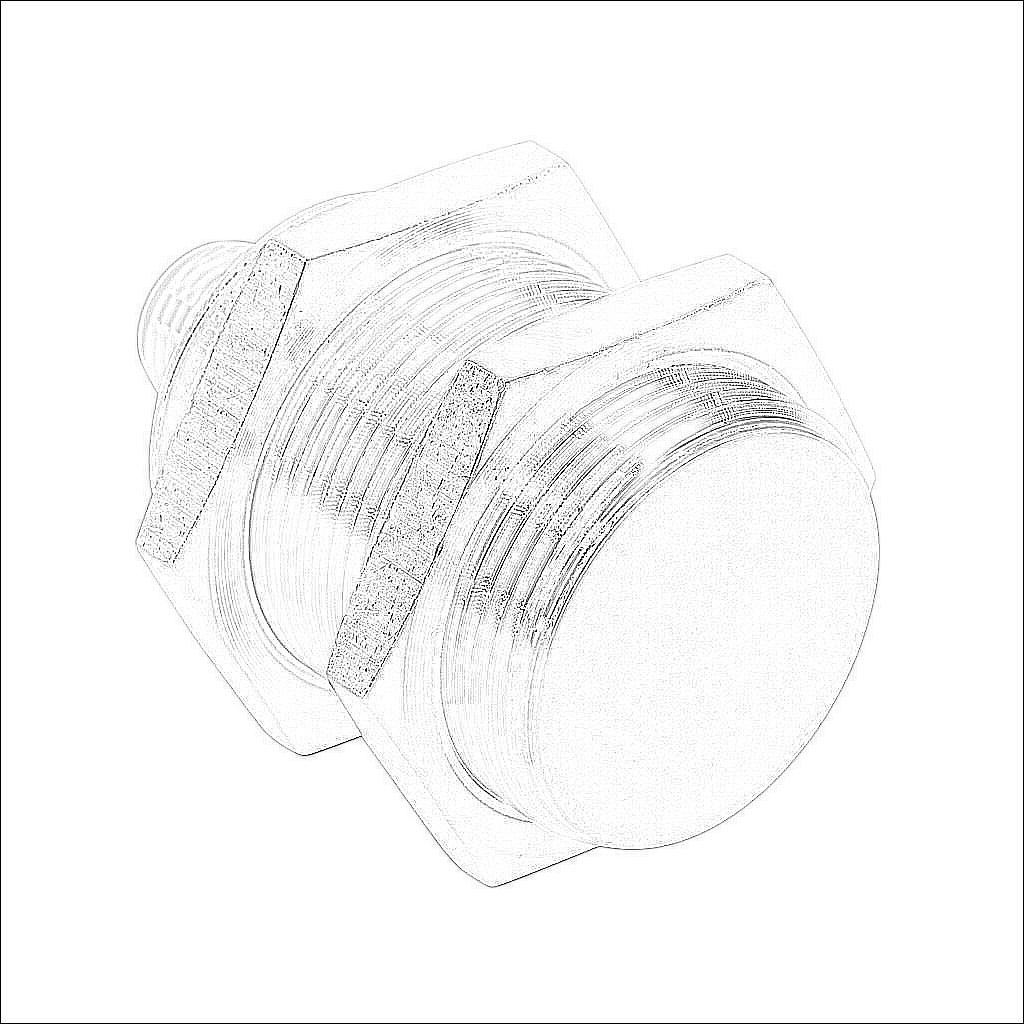

| Item | Proximity sensor | |
| Sensor Type | Inductive | |
| Application | Harsh duty and full metal | |
| Shape | Tubular | |
| Housing Size | 30mm diameter x 50mm body | |
| Housing Material | Stainless steel | |
| Barrel Type | Threaded | |
| Sensing Method | Extended sensing | |
| Adjustable | No | |
| Number of Wires | 3 | |
| Switching Output | PNP | |
| Operation Mode | N.O. output | |
| Sensing Distance | 15mm | |
| Mounting Type | Flush | |
| IO-Link Compatible | No | |
| Switching Frequency | 50 Hz | |
| Operating Voltage | 10-30 VDC | |
| Operating Temperature | -25 to 70c | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP65 IP66 IP67 IP68 IP69K | |
| Connection | 4-pin M12 quick-disconnect | |
| Includes | Mounting hardware | |
