| Technical Data | ||
|---|---|---|
| Brand | Protos X | |

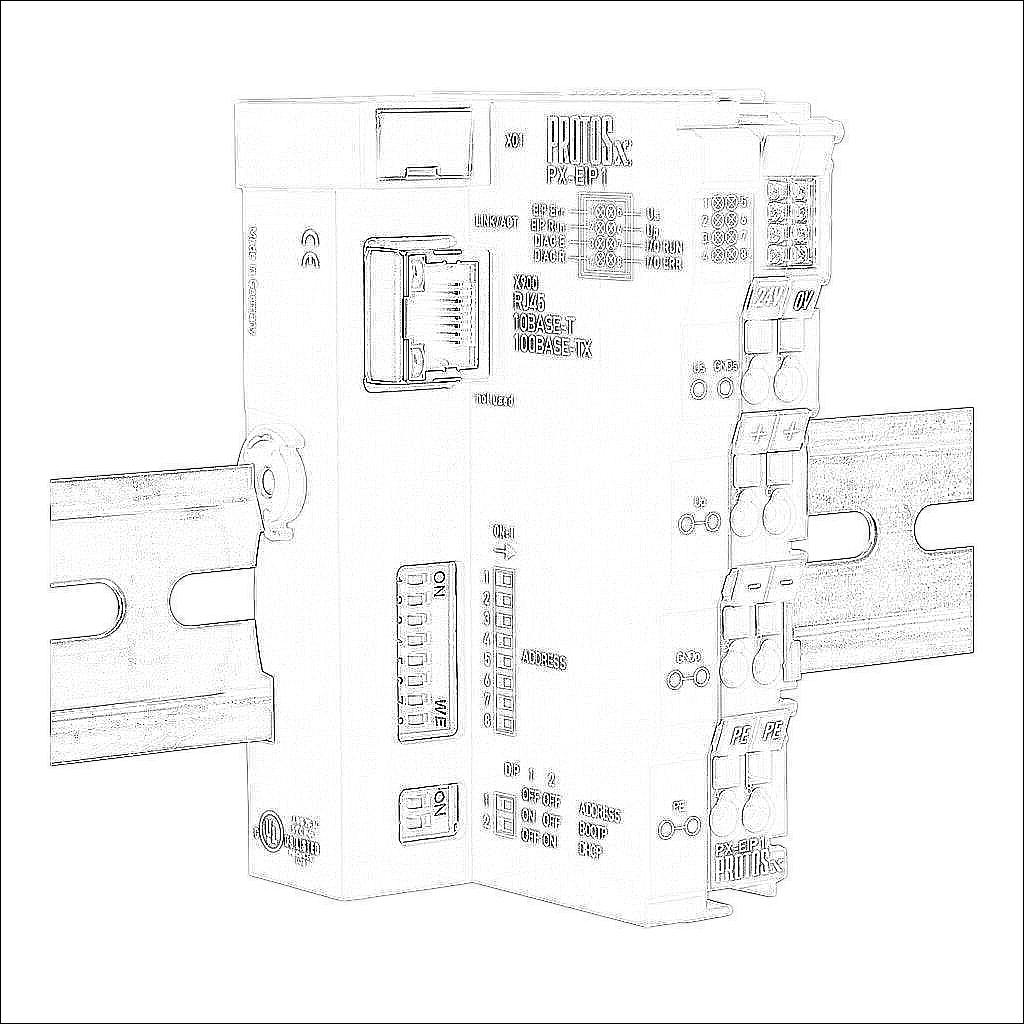

| Item | Compact bus coupler | |
| Voltage Rating | 24 VDC | |
| Number of Ports | 1 | |
| Communication Port and Connection Type(s) | (1) Ethernet (RJ45) port(s) | |
| Port Protocol(s) | EtherNet/IP implicit messaging adapter | |
| Port Speed(s) | 10/100 Mbps | |
| Number of Bus Terminals Supported | 64 per assembly, 255 with I/O bus expansion (based on power budget) | |
| Number of Discrete Inputs/Outputs | 1020 inputs/1020 outputs with 255 terminals | |
| Number of Analog Inputs/Outputs | 128 total | |
| Maximum Number of Data Bytes | 512 input bytes/512 output bytes | |
| For Use With | Protos X I/O systems | |
