| Technical Data | ||
|---|---|---|
| Brand | Gefran | |

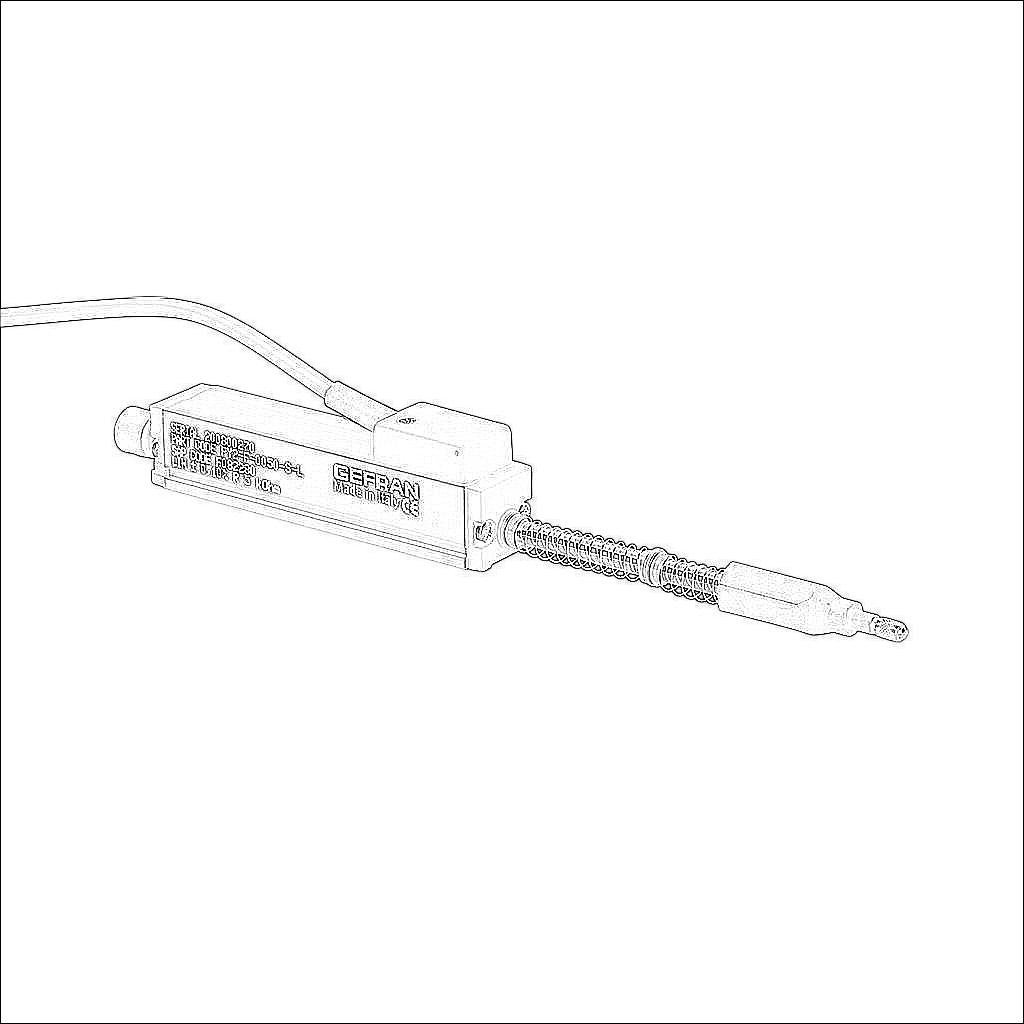

| Item | Linear position sensor | |
| Transducer Type | Potentiometer | |
| Action | Spring loaded slide | |
| Stroke | 50mm | |
| Resistance | 5k ohm | |
| Head Type | 4mm ball tip | |
| Head Material | Stainless steel | |
| Housing Material | Anodized aluminum | |
| Housing Size | 26.5 x 22 x 88mm body | |
| Sensor Resolution | Infinite | |
| Linearity | +/- 0.10% | |
| Switching Cycles | 25,000,000 cycles | |
| Mounting | Channel | |
| IP Rating | IP40 | |
| Connection | Pigtail | |
| Number of Wires | 3 | |
| Conductor Size | 0.25mm2 (24 AWG) | |
| Cable Length | 3.2ft/1m | |
| Jacket Material | PVC | |
| Includes | Mounting hardware | |
