| Technical Data | ||
|---|---|---|
| Brand | AutomationDirect | |

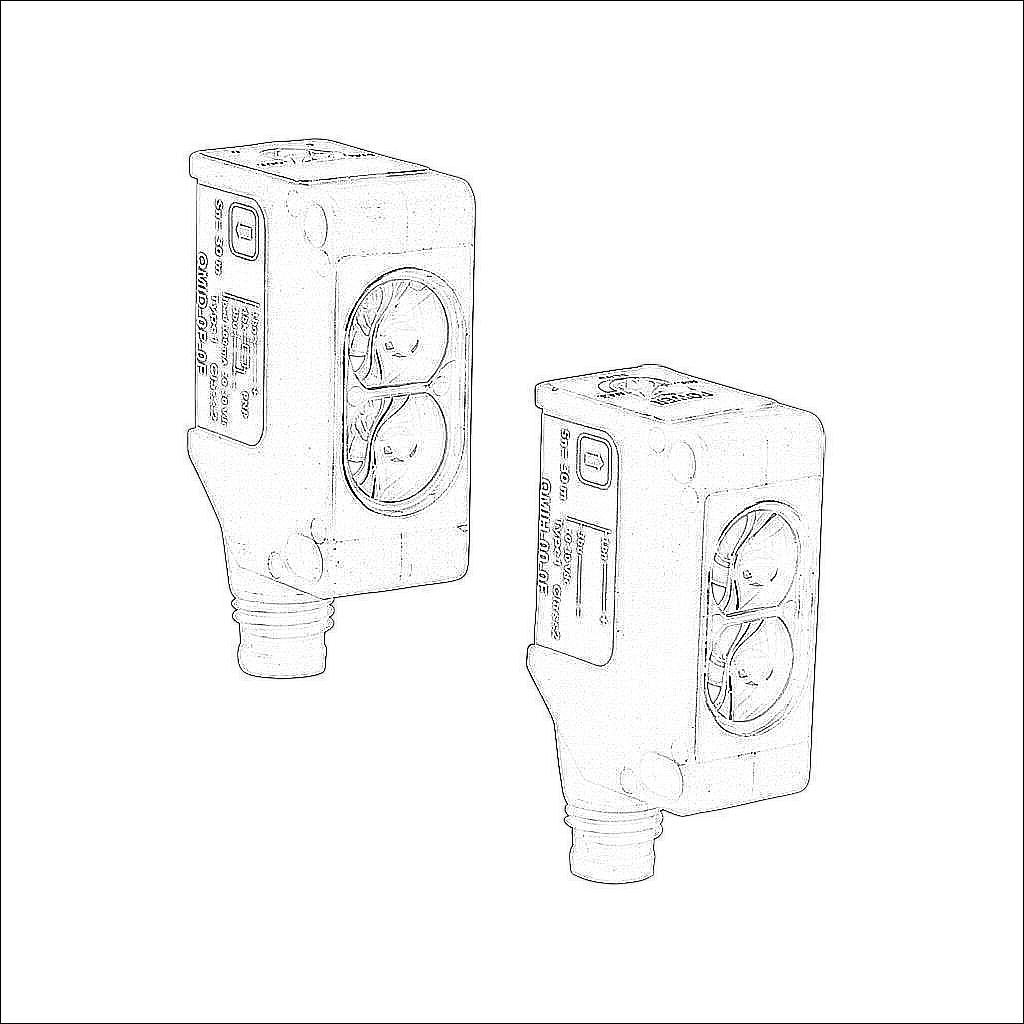

| Item | Photoelectric sensor | |
| Shape | Rectangular | |
| Housing Size | 21 x 12.8 x 31.2mm | |
| IP Rating | IP67 | |
| Application | Standard duty and long range | |
| Housing Material | Plastic | |
| Sensing Method | Through-beam pair | |
| Operating Voltage | 10-30 VDC | |
| Number of Wires | 3 | |
| Switching Output | PNP | |
| Sensing Distance | 0-30m | |
| Sensitivity | Potentiometer | |
| Operation Mode | Selectable light-on/dark-on | |
| Switching Frequency | 2 kHz | |
| Light Emission | Infrared | |
| Connection | 4-pin M8 quick-disconnect | |
| Additional Information | Purchase cable separately | |
