| Technical Data | ||
|---|---|---|
| Brand | RECOM Power | |

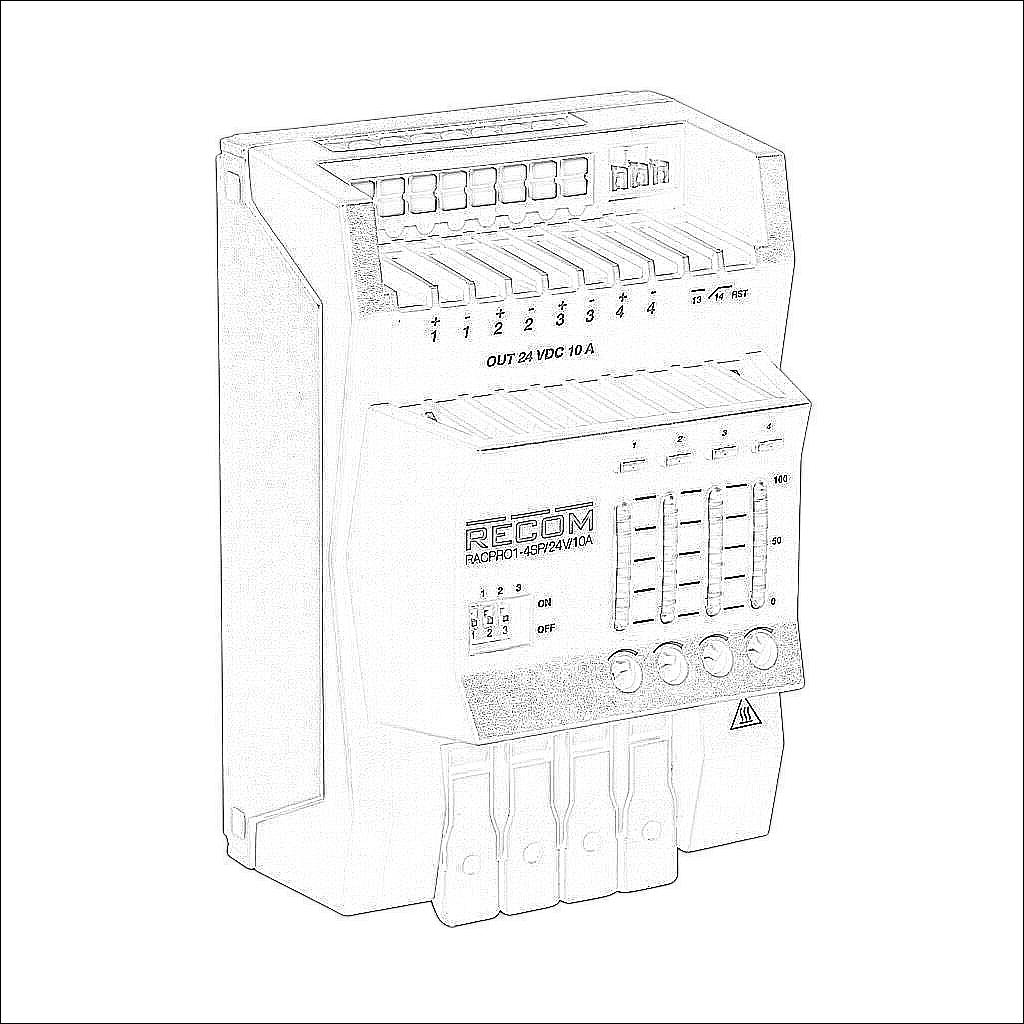

| Item | Circuit protector | |
| Series | RACPRO1 | |
| Circuit Breaker Type | Compact | |
| Circuit Type | Supplementary | |
| Current-Limiting | Yes | |
| Amperage Rating | Adjustable 3.5-11.5A | |
| Input voltage range | 22-28 VDC | |
| Output Voltage Range | 22-28 VDC | |
| Channels | 4 independent | |
| Trip Type | Electronic | |
| Reset | Remote or local | |
| UL Rating | UL 61010 and UL 62368 | |
| NEC Class 2 | No | |
| HACR Rated | No | |
| Reverse Feed Capable | No | |
| Mounting | 35mm DIN rail | |
| Connection | Push-in cage clamp | |
