| Technical Data | ||
|---|---|---|
| Brand | AutomationDirect | |

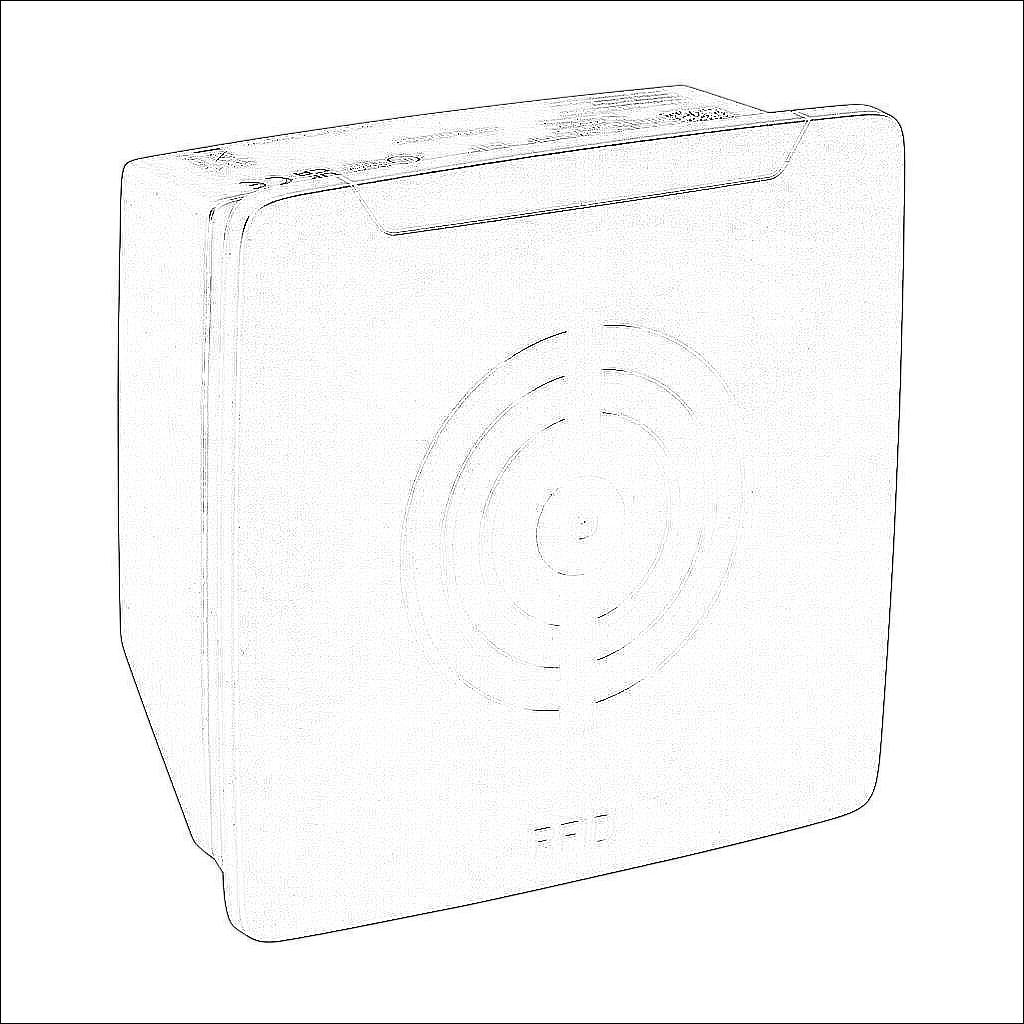

| Item | Read-write-evaluation module | |
| Module Type | RFID | |
| Shape | Rectangular | |
| Communication Type | HF | |
| RFID Frequency | 13.56 MHz | |
| Read-Write Distance | 220mm | |
| Communication Port and Connection Type(s) | (2) 5-pin M12 D-coded and (1) 5-pin M12 quick-disconnect port(s) | |
| Port Protocol(s) | TCP/IP and EtherNet/IP | |
| Standard I/O Mode Supported | No | |
| Operating Voltage | 19.2-28.8 VDC | |
| Operating Temperature | -20 degrees to 60 degrees C | |
| Housing Size | 113 x 118.5 x 50mm body | |
| Housing Material | Thermoplastic (PBT) | |
| IP Rating | IP67 | |
