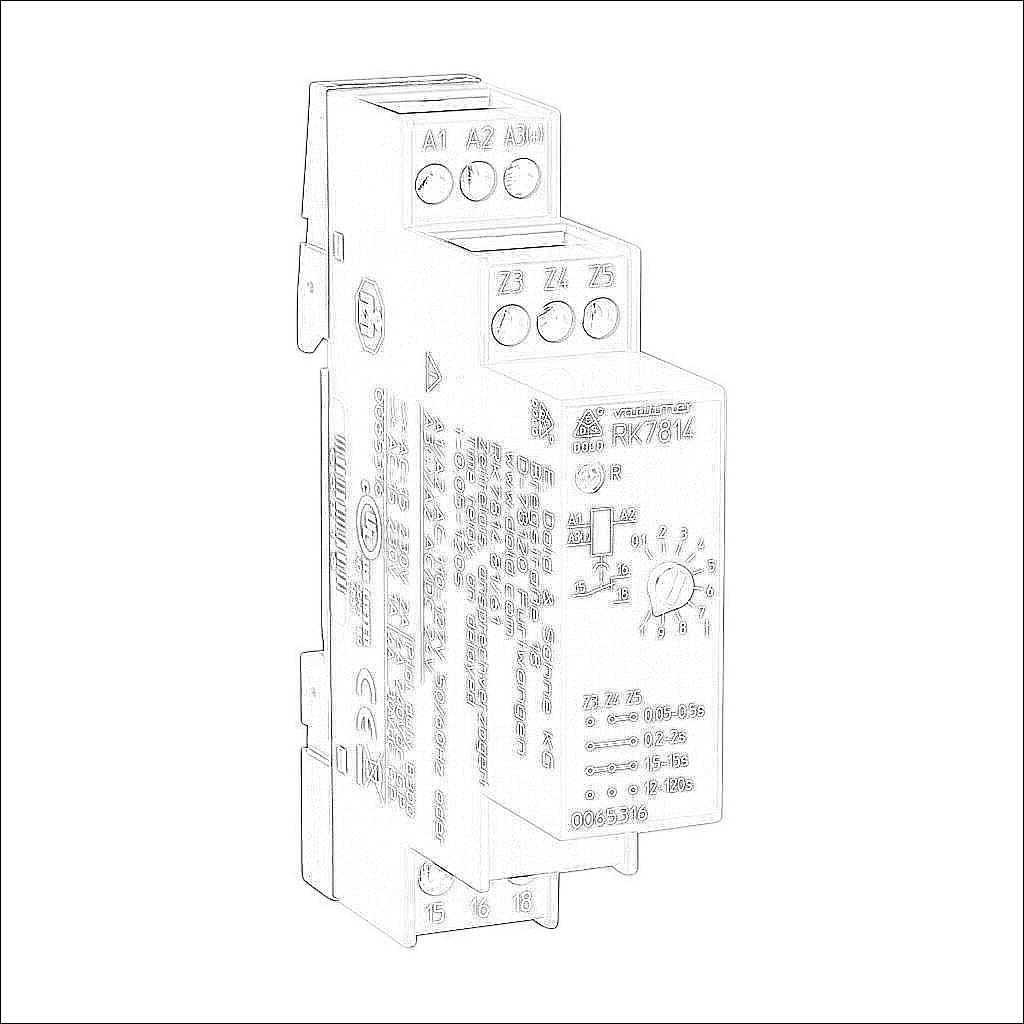

RK7814-81-61

RK7814-81-61

Dold on-delay relay timer, 0.05 to 120 seconds selectable timing range, 24 VAC/VDC and 110-127 VAC operating voltage, 2A contact rating, (1) SPDT timed relay output(s), 35mm DIN rail mount, screw terminal(s).

$53.75
/
Technical Data
BrandDold
ItemRelay timer
Timer TypeOn-delay
IndicatorLED
Timing Range0.05 to 120 seconds selectable
Operating Voltage24 VAC/VDC and 110-127 VAC
Timer Output Type(s)(1) SPDT timed relay
Output Type(1) N.O., (1) N.C.
Timer Function(s)
  • on-delay
Contact Rating2A
Mounting35mm DIN rail
Connector TypeScrew terminal(s)
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
