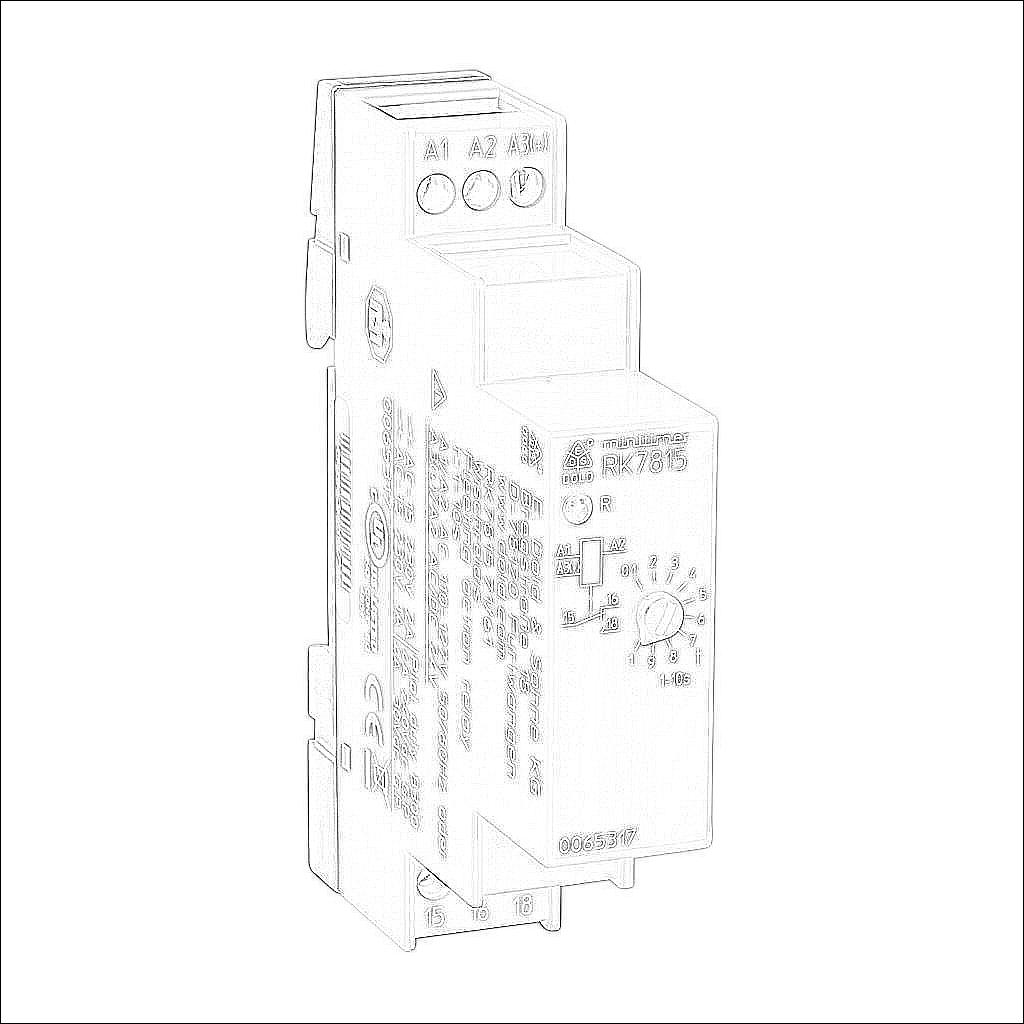

RK7815-71-61

RK7815-71-61

Dold fleeting (single-shot) relay timer, 1 to 10 seconds timing range, 24 VAC/VDC and 110-127 VAC operating voltage, 2A contact rating, (1) SPDT timed relay output(s), 35mm DIN rail mount, screw terminal(s).

$50
/
Technical Data
BrandDold
ItemRelay timer
Timer TypeFleeting (single-shot)
IndicatorLED
Timing Range1 to 10 seconds
Operating Voltage24 VAC/VDC and 110-127 VAC
Timer Output Type(s)(1) SPDT timed relay
Output Type(1) N.O., (1) N.C.
Timer Function(s)
  • fleeting (single-shot)
Contact Rating2A
Mounting35mm DIN rail
Connector TypeScrew terminal(s)
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
