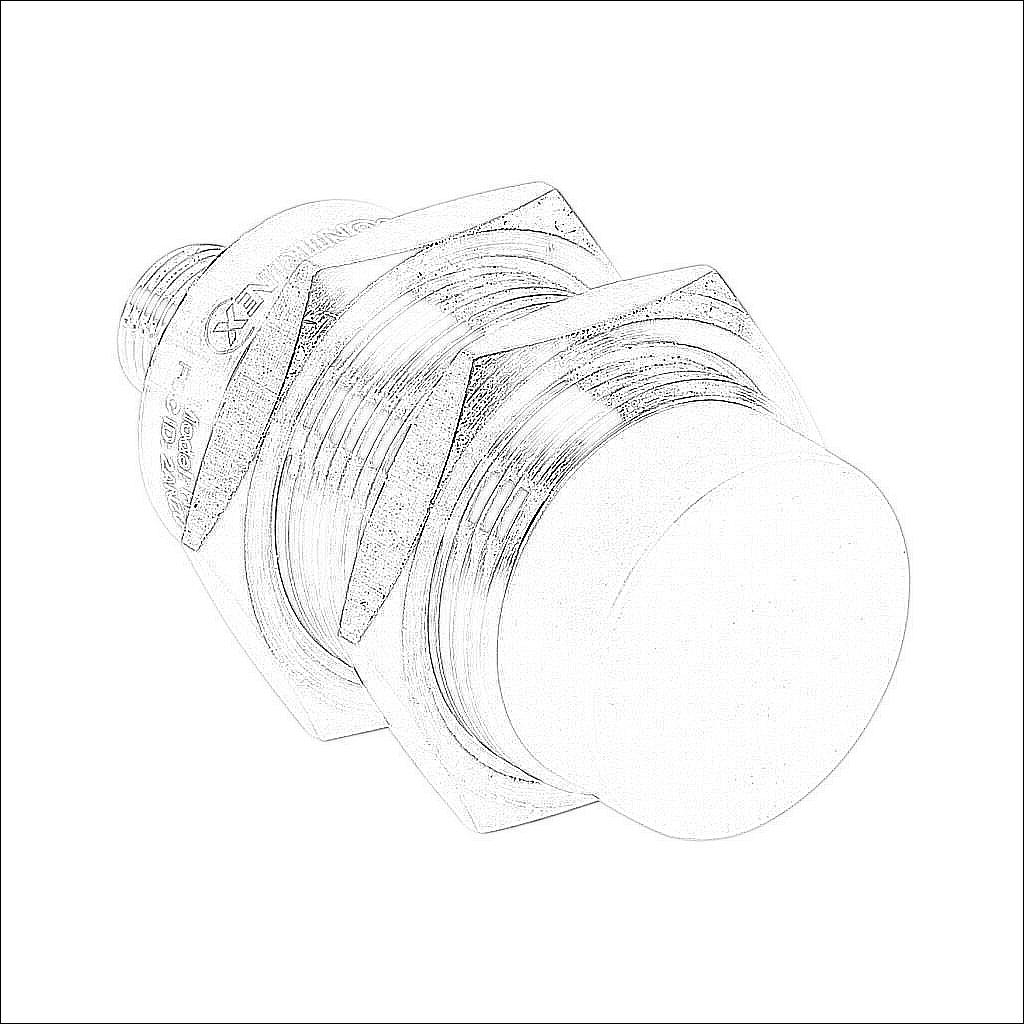

| Technical Data | ||
|---|---|---|
| Brand | Contrinex | |
| Item | Read-write module | |
| Module Type | RFID | |
| Shape | Tubular | |
| Mounting | Non-flush | |
| Communication Type | HF | |
| RFID Frequency | 13.56 MHz | |
| Read-Write Distance | 58mm | |
| Communication Port and Connection Type(s) | (1) 4-pin M12 A-coded (IO-Link) port(s) | |
| Port Protocol(s) | IO-Link Class A Device | |
| Port Speed(s) | IO-Link COM3 | |
| IO-Link Version | IO-Link v1.1 | |
| Standard I/O Mode Supported | Yes | |
| Operating Voltage | 11-32 VDC | |
| Operating Temperature | -25 degrees to 80 degrees C | |
| Housing Size | 30mm diameter x 63.5mm body | |
| Housing Material | Chrome-plated brass | |
| IP Rating | IP67 | |
| Additional Information | Purchase RFID tags separately | |
