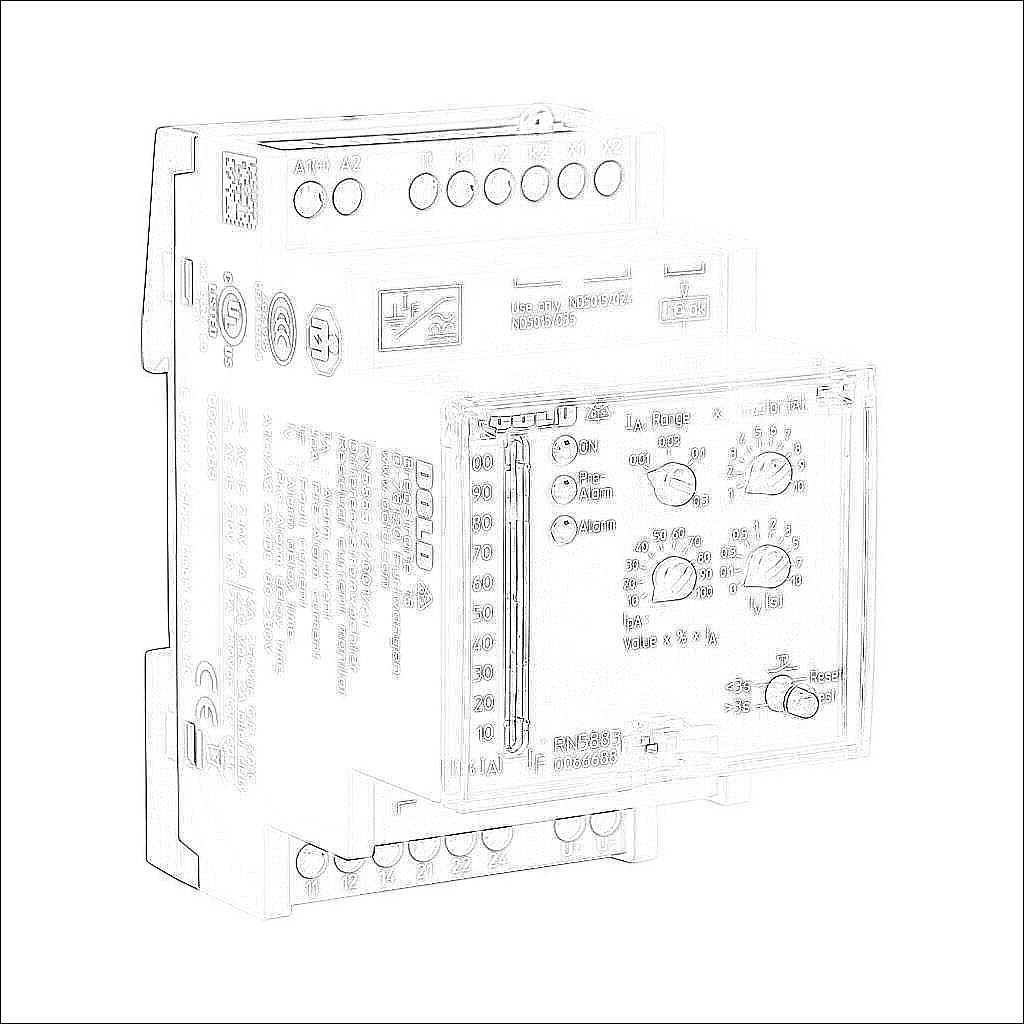

RN5883-001-80-230V

RN5883-001-80-230V

Dold residual current monitor, 10 mA to 3A selectable trip point, voltage and relay, (2) SPDT, normally energized or normally de-energized, manual reset output, 80-230 VAC/VDC operating voltage. Requires Dold ND5015-24-61 or ND5015-35-61 transformers.

$587.50
/
Technical Data
BrandDold
ItemResidual current monitor
Trip Point10 mA to 3A selectable
OutputVoltage and relay, (2) SPDT, normally energized or normally de-energized, manual reset
Output Voltage Signal Range0-10 VDC
Output Rating3A @ 230 VAC N.O., 1A @ 230 VAC N.C.
Operating Voltage80-230 VAC/VDC
Mounting35mm DIN rail
Electrical ConnectionScrew terminals
UL RatingUL 508 listed
RequiresDold ND5015-24-61 or ND5015-35-61 transformers
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
