| Technical Data | ||
|---|---|---|
| Brand | Dold | |

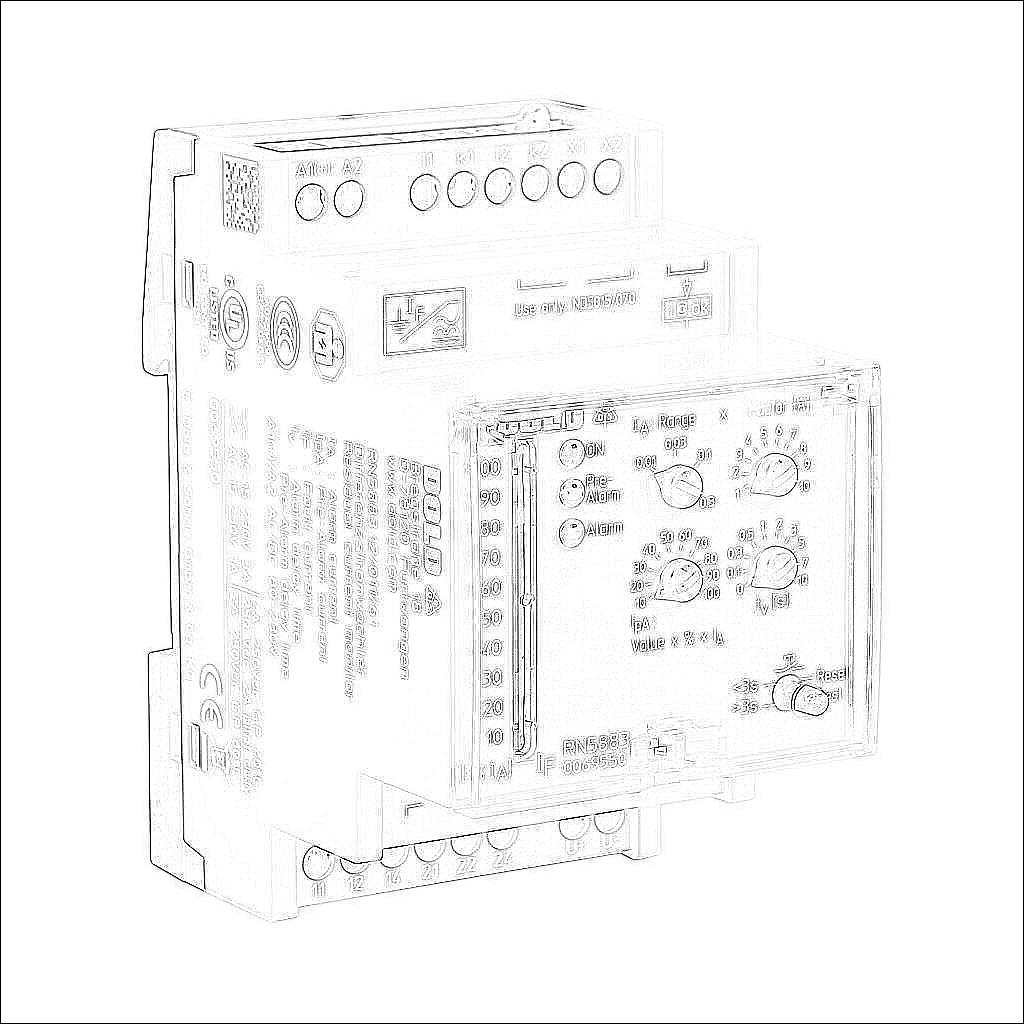

| Item | Residual current monitor | |
| Trip Point | 10 mA to 3A selectable | |
| Output | Voltage and relay, (2) SPDT, normally energized or normally de-energized, manual reset | |
| Output Voltage Signal Range | 0-10 VDC | |
| Output Rating | 3A @ 230 VAC N.O., 1A @ 230 VAC N.C. | |
| Operating Voltage | 80-230 VAC/VDC | |
| Mounting | 35mm DIN rail | |
| Electrical Connection | Screw terminals | |
| UL Rating | UL 508 listed | |
| Requires | Dold ND5015-070-61 transformer | |
