RN9877-0103P3W525V

RN9877-0103P3W525V

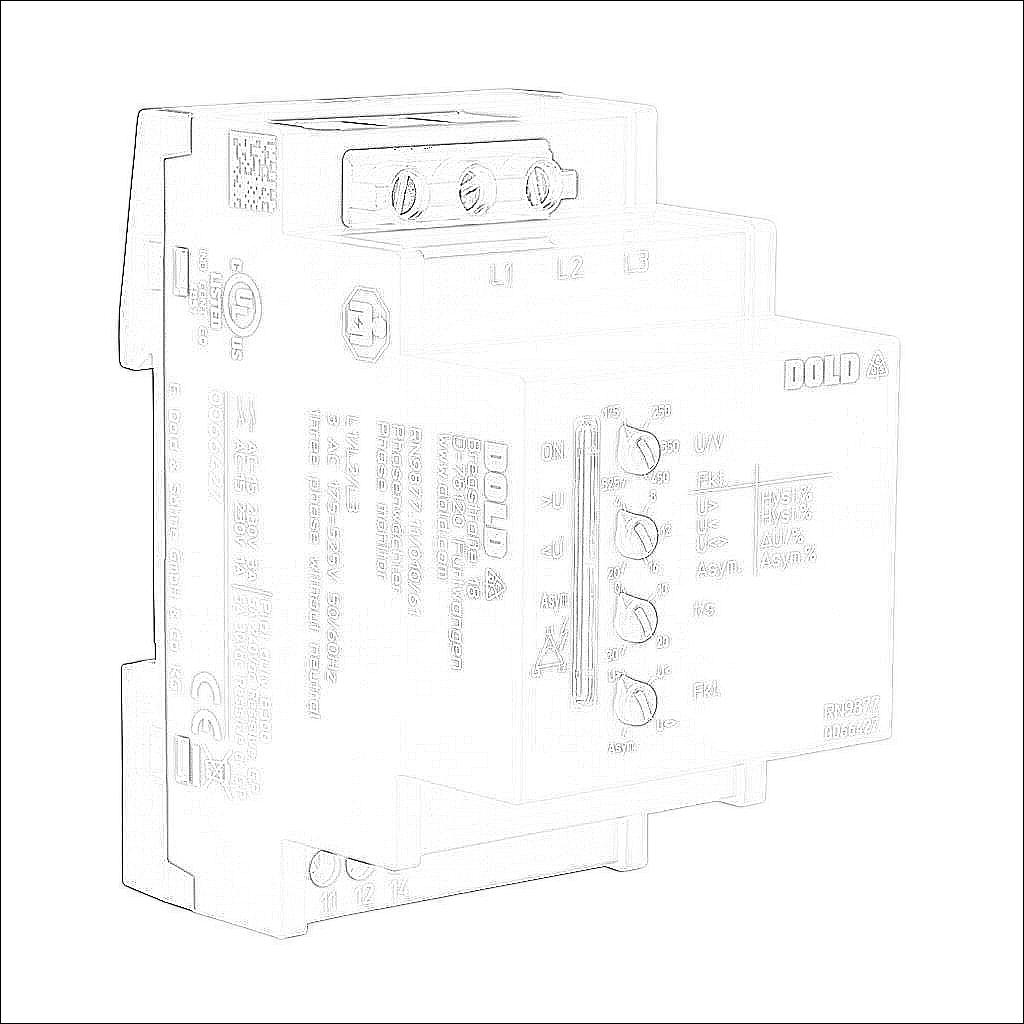

Dold phase monitor relay, 3-phase, 35mm DIN rail mount, 175-525 VAC input voltage, SPDT, 5A contact rating, screw terminal(s), LED indicator(s), phase reversal, phase unbalance, overvoltage, undervoltage and voltage range protection.

$178.75
/
Technical Data
BrandDold
ItemRelay
Relay TypePhase monitor
Number of Phases3
Mounting35mm DIN rail
Relay Housing TypeFinger-safe
Input Voltage175-525 VAC
Relay ConfigurationSPDT
Connector TypeScrew terminal(s)
Contact Rating5A
IndicatorLED
Protection Type(s)
  • phase reversal
  • phase unbalance
  • overvoltage
  • undervoltage
  • voltage range
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
