| Technical Data | ||
|---|---|---|
| Brand | ProSense | |

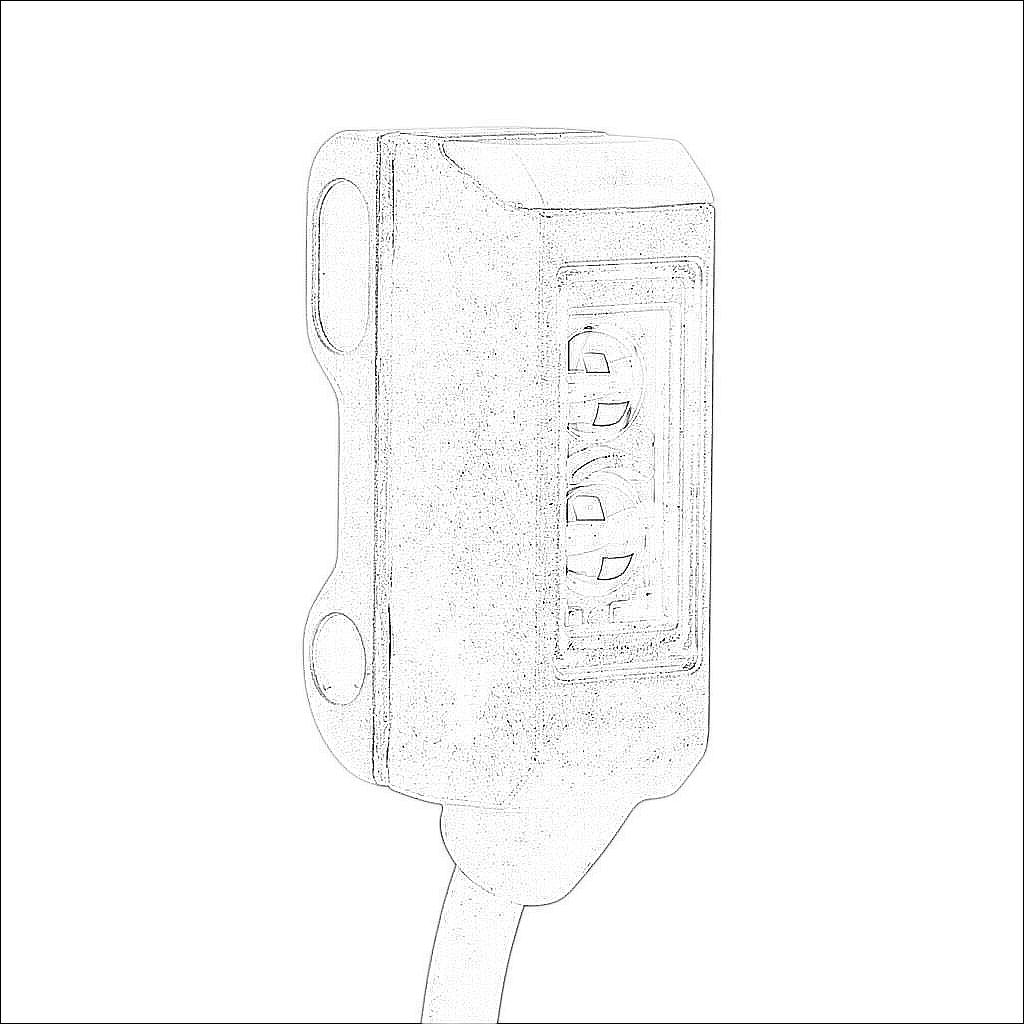

| Item | Photoelectric sensor | |
| Shape | Rectangular | |
| Housing Size | 14.4 x 8.1 x 28.1mm | |
| IP Rating | IP65 IP67 | |
| Housing Material | ABS plastic | |
| Sensing Method | Diffuse with background suppression | |
| Operating Voltage | 10-30 VDC | |
| Number of Wires | 3 | |
| Switching Output | NPN | |
| Sensing Distance | 3-15mm | |
| Operation Mode | Light-on | |
| Switching Frequency | 1000 Hz | |
| Light Emission | Visible red | |
| IO-Link Compatible | No | |
| Cable Length | 11.8in/300mm | |
| Jacket Material | Carbon steel | |
| Connection | 4-pin M8 quick-disconnect | |
| Conductor Size | 28 AWG | |
| Additional Information | Purchase cable separately | |
