S201YF02V5FG9

S201YF02V5FG9

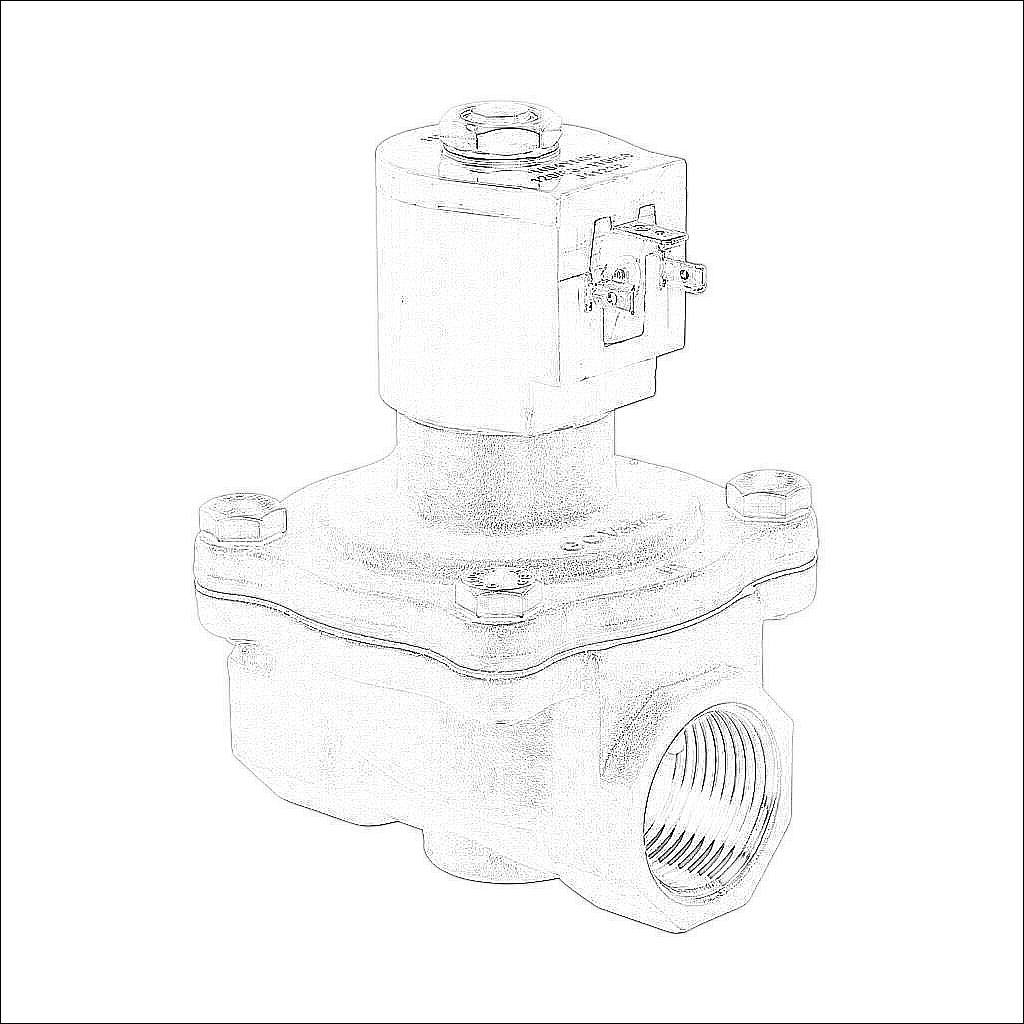

GC Valves solenoid valve, 2-port (2-way), 2-position, N.C., brass body, Viton seal(s), 1in female NPT inlet(s), 1in female NPT outlet(s), Cv=11, 0 psi minimum operating pressure, 120 VAC operating voltage, 18mm DIN style wiring plug.

$465
/
Technical Data
BrandGC Valves
ItemValve
Working FluidPneumatic, inert gas, water, coolant or light oil
Valve TypeSolenoid process
Port Quantity2-port (2-way)
Number Of Positions2
Valve ConfigurationN.C.
ActionSingle solenoid spring return
Body MaterialBrass
Seal MaterialViton
Inlet Port1in female NPT
Outlet Port1in female NPT
Flow Coefficient11
Maximum Operating PressureVaries with fluid
Minimum Operating Pressure0 psi
Working Fluid Temperature230 deg F maximum
Operating Voltage120 VAC
Power Rating10 VA
Electrical Connection18mm DIN style wiring plug
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
