S211YF02V5DG4

S211YF02V5DG4

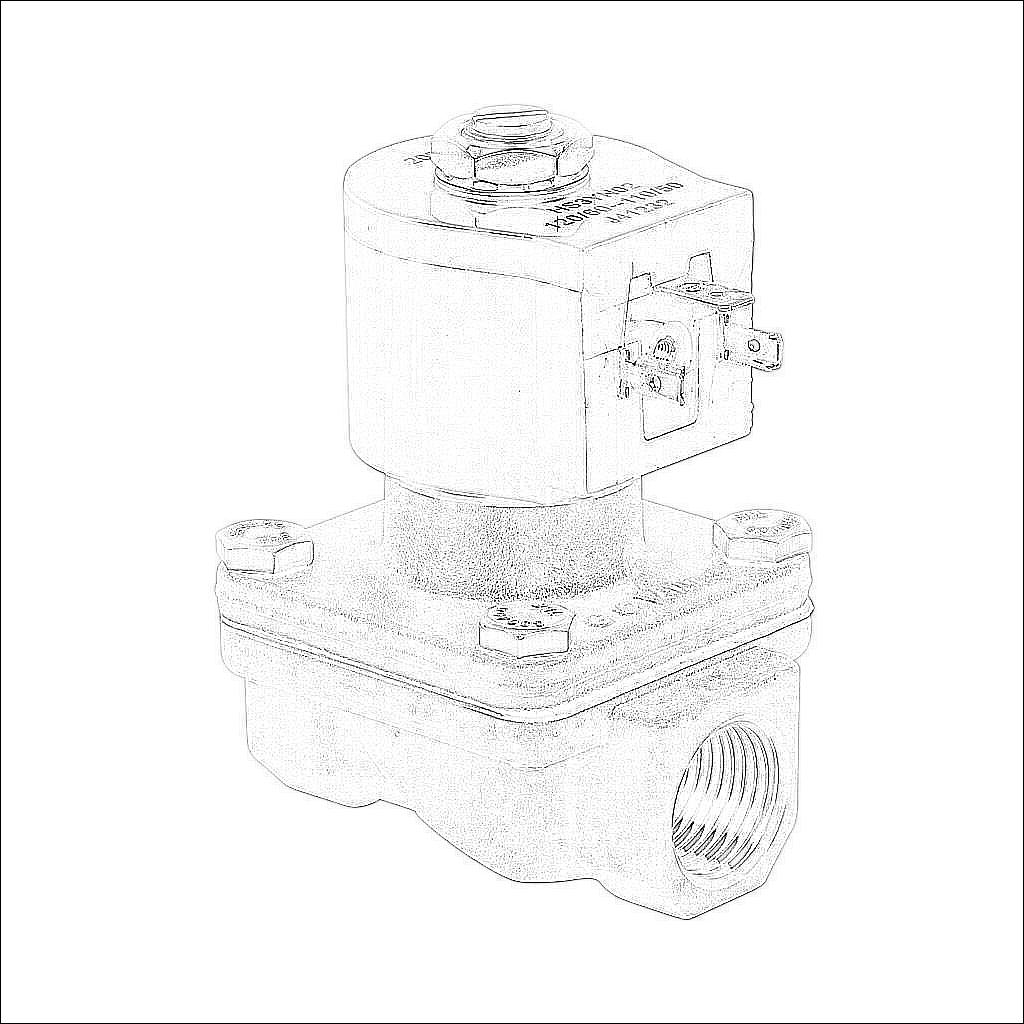

GC Valves solenoid valve, 2-port (2-way), 2-position, N.C., brass body, Viton seal(s), 1/2in female NPT inlet(s), 1/2in female NPT outlet(s), Cv=4.3, 4 psi minimum operating pressure, 120 VAC operating voltage, 18mm DIN style wiring plug.

$190
/
Technical Data
BrandGC Valves
ItemValve
Working FluidPneumatic, inert gas, water, coolant or light oil
Valve TypeSolenoid process
Port Quantity2-port (2-way)
Number Of Positions2
Valve ConfigurationN.C.
ActionSingle solenoid spring return
Body MaterialBrass
Seal MaterialViton
Inlet Port1/2in female NPT
Outlet Port1/2in female NPT
Flow Coefficient4.3
Maximum Operating PressureVaries with fluid
Minimum Operating Pressure4 psi
Working Fluid Temperature230 deg F maximum
Operating Voltage120 VAC
Power Rating8 VA
Electrical Connection18mm DIN style wiring plug
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
