| Technical Data | ||
|---|---|---|
| Brand | Eltwin | |

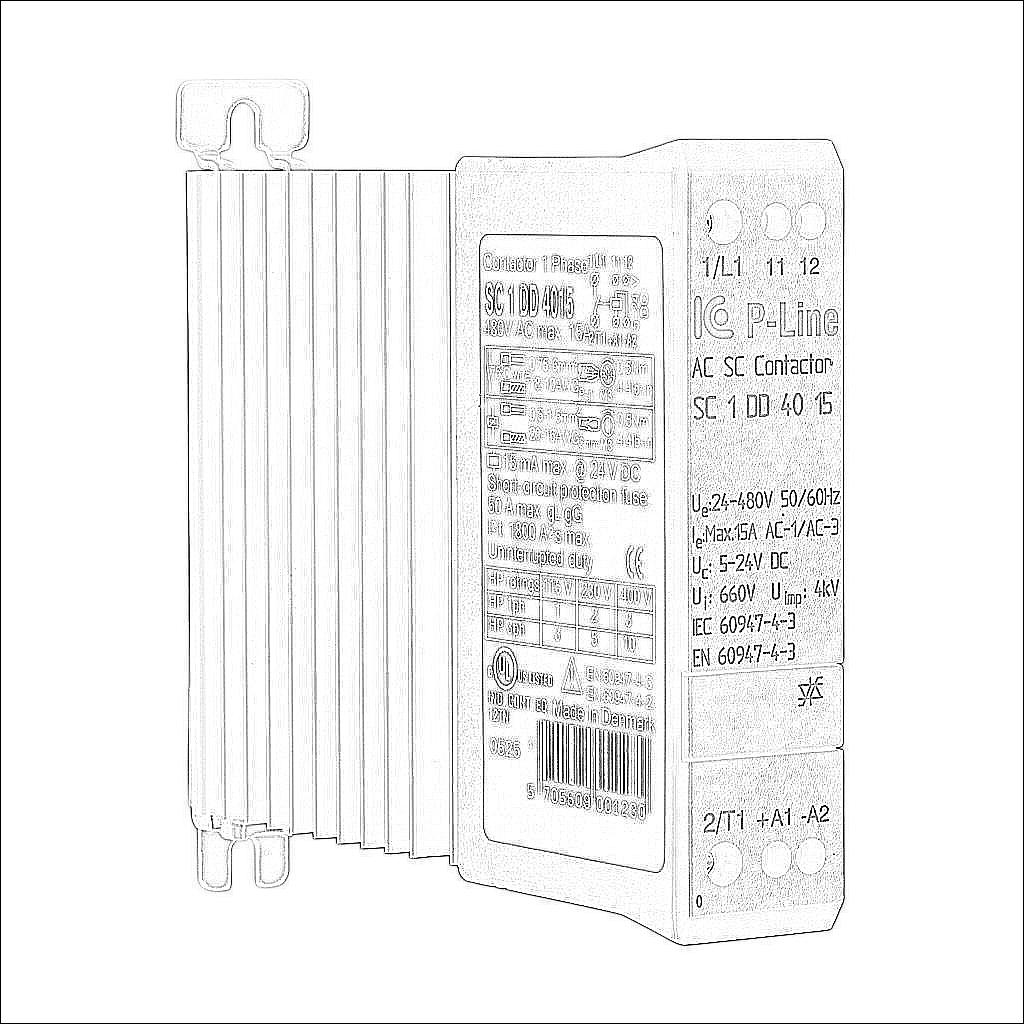

| Item | Contactor | |
| Series | SC1 | |
| Contactor Type | Solid state | |
| Actuator Type | Electronic | |
| Reversing | No | |
| Amperage Rating | 15A | |
| Power Poles | (1) N.O. SCR switched | |
| Switching Type | Zero cross | |
| Operating Voltage | 24-480 VAC (50/60Hz) | |
| Coil Voltage | 5-24 VDC | |
| Horsepower Rating | 10hp | |
| SCCR Rating | 5kA SCCR | |
| UL Rating | UL 508 rated | |
| Protection Type(s) | Varistor surge protection | |
| Mounting | 35mm DIN rail or panel | |
| Indicating Type | (1) status LED | |
| Additional Information | Purchase overload protection switch separately | |
